96 Cores 4 Ports ABS Plastic Fiber Optic Splice Closure Horizontal Fiber Optic Splice Enclosure for FTTH Inline Joint

  • 96 Cores 4 Ports ABS Plastic Fiber Optic Splice Closure Horizontal Fiber Optic Splice Enclosure for FTTH Inline Joint
  • 96 Cores 4 Ports ABS Plastic Fiber Optic Splice Closure Horizontal Fiber Optic Splice Enclosure for FTTH Inline Joint
  • 96 Cores 4 Ports ABS Plastic Fiber Optic Splice Closure Horizontal Fiber Optic Splice Enclosure for FTTH Inline Joint
  • 96 Cores 4 Ports ABS Plastic Fiber Optic Splice Closure Horizontal Fiber Optic Splice Enclosure for FTTH Inline Joint
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number Inline 2-2-01-xFO
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T,L/C
Supply Ability 50,000pcs/week
Product Details
Type Inline, Horizontal Type Cable Ports 4 Ports
Cable Diameter 8.0~22.0mm Min. Capacity 4 Cores
Max Capacity 96 Cores Material PPR, ABS, PC, PP
Weight 3KG Size 460x180x120mm
Highlight

fiber optic splice enclosure

,

fibre optic splice closure
Leave a Message
Product Description
Product Overview

Horizontal type 4-port fiber optic splice closure with 2 input ports and 2 output ports. Also known as an inline-type optical fiber splice enclosure box, this closure is available in configurations from 6 cores up to 288 cores for fiber optic cable connections in aerial, underground, pipeline, and hand-hole telecom projects. Cable out-ports can range from 3 up to 10 ports. Vertical type fiber optic splice enclosure boxes are also available. OEM service is offered, including custom LOGO printing, packaging, and labels.

Quick Specifications
Name: Horizontal fiber optic joint splice closure box
Part Number: Inline 2-2-01
Cable Entry Port: 4 ports
Fiber Capacity: 96 cores
Size: 380 × 175 × 80 mm
Weight: Approx. 1.5 kg
Material: ABS / PC Plastic
Sealing Structure: Silica gel
Cable Diameter: 7.0–22.0 mm
Working Temperature: −40 °C to 65 °C
Key Features
  • Great corrosion resistance
  • Suitable for any harsh environment
  • Anti-lighting (lightning protection)
  • Excellent water-proof function
Applications
  • Aerial, direct buried, underground, pipeline, hand-holes, duct mounting, and wall mounting
  • Widely used in FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Product Pictures

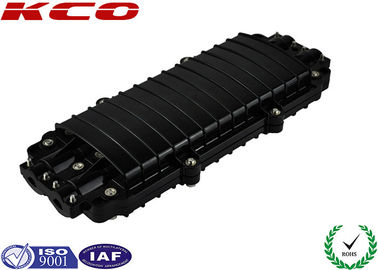

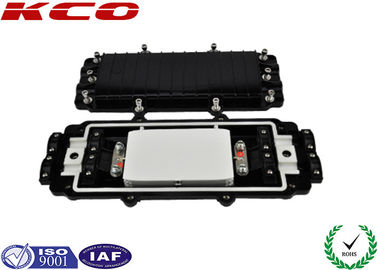

Horizontal inline fiber optic splice closure exterior view showing ABS plastic housing and cable entry portsDetailed diagram of horizontal fiber optic splice closure internal structure and components
Main Parts
No.NameQuantityUsageRemark
1Crust1 setProtecting fiber cable splices in whole
2Fusion splice trayMax. 4 traysFix fiber, protect heat-shrinkable tube sleeve
3Foundation1 setFix cable, reinforced core and tray
4Seal fitting1 setAir-proof between cover and bottom
5Port plug4 piecesSealing empty ports
6Valve1 setPressure measurement, inspection sealingConfigure by user
Accessories List
No.Name of AccessoriesQuantityUsageRemarks
1Heat shrinkable tube—Protecting fiber splicesConfiguration as per capacity
2Nylon tie—Fixing fiber with protective coatConfiguration as per capacity
3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing
4Seal tape1 rollEnlarging diameter of fiber cable which fits in with seal fittingConfiguration as per specification
5Hanging hook1 setFor aerial use
6Label tape1 pieceSign fiber
7Spanner1 pieceInstall bolts of shell
8Desiccant1 bagDesiccating air
Accessories included with the horizontal fiber optic splice closure kit laid out for reference
Packaging
Packaging carton for the horizontal fiber optic splice closure showing box dimensions and labeling
OEM Service

If you want to display your own brand LOGO on the fiber optic splice enclosure box or package carton box, it is no problem. When your order quantity is more than 1,000 pcs, we can print it FREE for you. Call us or send an e-mail with your detailed requirement.

Shipping
  • By international express: TNT, DHL, UPS, special line express, etc.
  • By air: CA, ZH, CZ, AA, AC, BA, etc.
  • By sea
