FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI

  • FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI
  • FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI
  • FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-2201-W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 3-5 working days
Payment Terms Western Union,T/T,L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type GPON ONU GE Port 1 Port
FE Port 1 Port Wifi Yes
PON Port SC/UPC OEM Service Yes
Highlight

gpon onu modem

,

gpon ont router
Leave a Message
Product Description
FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI
GPON ONT/HGU is designed for FTTH and networking service providers. KCO-2201-W is based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Key Characteristics
  • Main service: 1GE+1FE+1WIFI
  • Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
  • Integrate OMCI and TR-069 remote configuration and maintenance
  • Support flexible QinQ VLAN, DHCP server/relay and IGMP/MLD multicast monitoring function
  • Support diagnostic monitoring and remote disabling of fiber optical
  • Compatible with Huawei, ZTE and Fiberhome OLT
  • Support 802.11n WiFi(T/R) function
  • Support NAT and firewall function
  • WAN support networking bridge, router and bridge/router mixed mode
Technical Specifications
Technical items KCO-2201-W
Fiber port 1 GPON interface SC single-mode/single-fiber Downstream rate 2.5Gbps Upstream rate 1.25Gbps
Wavelength Tx 1310nm Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-28dBm (1490nm)
WLAN IEEE802.11b/g/n, 300Mbps, a built-in antenna
LAN 1*10/100/1000Mbps+1*10/100Mbp adaptive ethernet ports, full/half duplex, RJ45 interface
DC power 12V 1A, external AC-DC power adapter
Button Reset Power WIFI
Power ≤10W
Operation Working temperature: -5〜+55℃ Working humidity:10〜90％(non-condensation)
Storage Storage temperature: -30℃〜+60℃ Storage humidity: 10〜90％(non-condensation)
Dimension 130*107*31mm (length*width*highth)
Net weight ≤0.2Kg
Data Service Functions
  • Full speed 1G non-blocking switching
  • 2048 MAC address table
  • Support VLAN QinQ, transparent, tag, translation, trunk, etc.
  • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
  • Support auto polarity detection of Ethernet ports (AUTO MDIX)
  • Integrated IEEE802.1p QoS with four level priority queues
  • Support IPv4 IGMP snooping and IPv6 MLD snooping
  • Support bridging, router and bridging/router mixed mode
Wi-Fi Service
  • Support Integrated 802.11b/g/n, 300Mbps, 2T2R
  • Support 64 connections
  • Support WEP and WPA/WPA2 security protocols
Product Photos

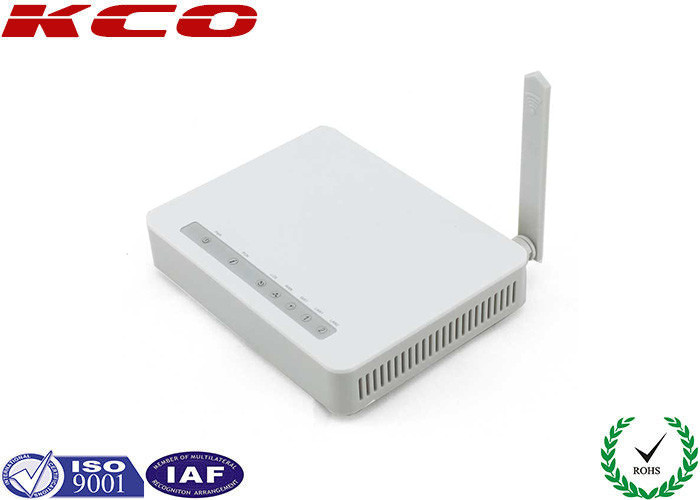

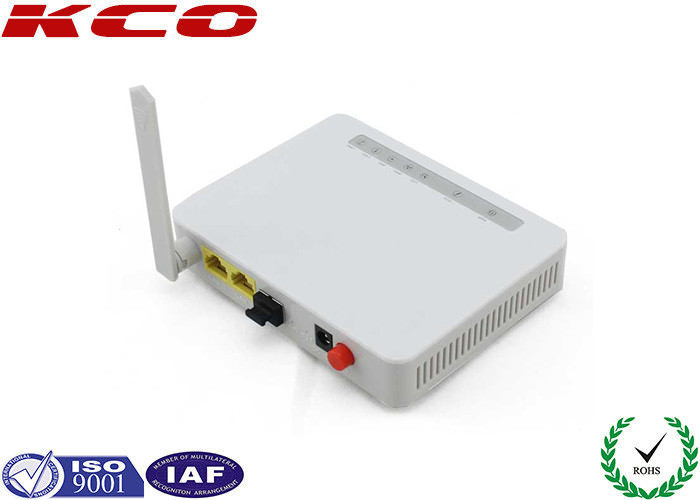

FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI 0
FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI 1
FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI 2
FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI 3
GPON ONU Solution
FTTH Active Fiber Optic EPON GPON ONU SFU 1GE 1FE WIFI 4
OEM/ODM Services
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing & Shipping
Packing: According to Standard Export Packing. Carton box, wooden box, wooden pallet.
Shipping Options:
  • International express such as UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • By sea
