MPSC SmartAX Huawei MA5800X2 Fiber Optic OLTs Control Board
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | GPON OLTs | PON Module | B+,C,C+,C++ |
|---|---|---|---|
| Application | FTTx Network System | PON Board | XGHD, GPSF, GPHF |
| P/N | MA5800X2 | Series | MA5800 |
| Brand | Huawei | Size | 442*268.7*88.1 (mm) |
| Switching Capacity Of The System | 480 Gbit/s | Sub-rack Port No. | 32 * GPON/EPON |
| High Light | Fiber Optic OLT Control Board,MA5800X2 Fiber Optic OLT,MPSC GPON ONU |
||
Product Description
Original MPSC SmartAX Huawei MA5800X2 Fiber Optic OLTs Control Board
GPON OLTs MA5800X2 Description:
- SmartAX MA5800 is a full-service distributed Optical Line Terminal (OLT) for building green, ultra-broadband, and intelligent aggregation access networks.
- Featuring distributed architecture, this multi-service access device provides users with a unified transmission platform for broadband, wireless, video, and video security.
- Gigabit Passive Optical Network (GPON), 10-Gigabit-Capable Passive Optical Network (XG-PON), 10-Gigabit-Capable Symmetric Passive Optical Network (XGS-PON), GE, and 10 GE access are all supported for multiple network construction modes, including Fiber To The Office (FTTO), Fiber To The Machine (FTTM), and Fiber To The Home (FTTH). O
- ne optical network covers all services, simplifying network architecture and reducing Operating Expenditure (OPEX).
- SmartAX EA5800 is available in small, medium, and large specifications, to meet the diverse needs of enterprises.
GPON OLTs MA5800X2 Parameter:
| Item | MA5800-X2 | |||
| Dimensions (W*D*H) | 442 mm x 268.7 mm x 88.1 mm | |||
| Maximum Number of Ports in a Subrack | 32 x GPON/EPON 96 x GE/FE 16 x 10G GPON/10G EPON 16 x 10G GE 64 x E1 |
|||
| Switching Capacity of the System | 480 Gbit/s | |||
| Ambient Temperature | -40°C to 65°C* *: The MA5800 can start up at a lowest temperature of -25°C and run at -40°C. The 65°C temperature refers to the highest temperature measured at the air intake vent |
|||
| Working Voltage Range | DC power supply: -38.4V to -72V AC power supply: 100V to 240V |
|||
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 | |||
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF | |||
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection switching, TDM/ETH PWE3, and PW protection switching | |||
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay | |||
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast | |||
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL | |||
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
|||

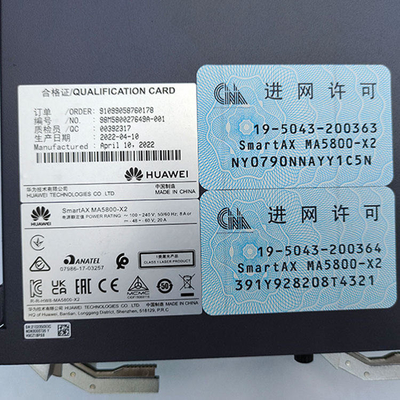

GPON OLTs MA5800X2 Product Photo:
Huawei ONU Main Catalogy:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
