Second Hand Original Huawei EchoLife EG8145V5 GPON ONU ONT Wifi Router
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | GPON ONU ONT | PON Port | SC/APC |
|---|---|---|---|
| GE Port | 4GE | Network | Wireless Lan, Wired LAN, TCP, Ip, Wifi |
| P/N | EG8145V5 | Dimension | 31*225*122 (mm) |
| Weight | 0.4kg | Compatible OLT | Huawei Series |
| High Light | EchoLife EG8145V5 GPON ONU,GPON ONU ONT Wifi Router,4GE Onu Device |
||
Product Description
Second Hand Original Huawei EchoLife EG8145V5 GPON ONU ONT Wifi Router
Huawei Echolife EG8145V5 Description:
- Huawei EG8145V5 GPON ONT is a routing-type ONT in the Huawei all-optical access solution.
- It uses the GPON technology to implement ultra-broadband access for users.
- It provides 4 GE+1 POTS+1 USB+2 WiFi(4 GE ports, 1 POTS port, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port).
- The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
- The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users.
- The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services.
- These features make the EG8145V5 a perfect option for broadband access.
Huawei Echolife EG8145V5 Applications:
Huawei Echolife EG8145V5 Parameter:
| Item | EchoLife EG8145V5 | |
| Dimensions (H x W x D) | 31*225*122 mm (without an external antenna and pads) | |
| Operating temperature | 0°C to 40°C | |
| Operating humidity | 5% RH to 95% RH (non-condensing) | |
| Power adapter input | 100–240 V AC, 50/60 Hz | |
| System power supply | 11–14 V DC, 3 A | |
| Static power consumption | 3.6 W | |
| Maximum power consumption | 9 W | |
| NNI | GPON | |
| Optical Connector | SC/APC | |
| Ports | 1POTS+4GE+2.4G/5G Wi-Fi+1USB | |
| Indicators | POWER/INTERNET/USB/LAN/WLAN | |
| Properties of interfaces | |
| GPON port | Class B+ Receive sensitivity: -27 dBm Max optical power: -8 dBm Wavelength: upstream 1310nm / downstream 1490nm WBF (G.984.5) Mapping between GEM Port and TCONT Authentication by SN or password (G.984.3 standard) Bidirectional FEC SR-DBA and NSR-DBA Type B |
| Ethernet Ports | Ethernet port-based VLAN tagging and de-tagging 1:1 VLAN, N:1 VLAN, or VLAN transparent QinQ VLAN MAC address limit MAC address learning Auto-negotiation: 10/100/1000 Mbps |
| POTS port | Mass. REN: 4 Encoding / Decoding: G.711A/μ, G.729a/b, G.722 Fax mode T.30 / T.38 / G.711 DTMF Emergency calls |
| USB port | USB 2.0 FTP network drive SAMBA file sharing DLNA function |
| WLAN | IEEE 802.11 b/g/n (2.4 GHz) IEEE 802.11 a/n/ac (5 GHz) 2x2 MIMO in both bands Antenna energy gain: 5 dBi WMM WPS Multiple SSID 2.4 and 5 GHz simultaneously Max theoretical throughput: 300 Mbps in 2.4 GHz band, 867 Mbps in 5 GHz band |
| Software functions | |
| Smart connection | Smart Wi-Fi coverage Auto negotiation SIP / H.248 Parental control Any service available on any port L2/L3 (IPv4) forwarding |
| Other functions | WiFi shutdown schedule Portal / 802.1x authentication SoftGRE sharing |
| Smart O&M | IPTV quality diagnostics eMDI ONT rogue detection and isolation from OLT Call emulation, circuit test, loop-line test PPPoE and DHCP simulation/testing WLAN emulation |
| Layer3 functions | PPPoE / static IP / DHCP NAT / NAPT Port forwaring ALG, UPnP DDNS, DNS server, DNS client IPv4 / IPv6 dual stack DS-Lite IPv6 SPI Static / Default Tracy |
| Multicast | IGMP v2 / v3 proxy / snooping MLD v1 / v2 snooping |
| QoS | Ethernet port limiting 802.1p Prioritization SP / WRR / SP+WRR Packet Limiting (broadcast) |
| O&M | OMCI / Web UI / TR-069 Software Backup |

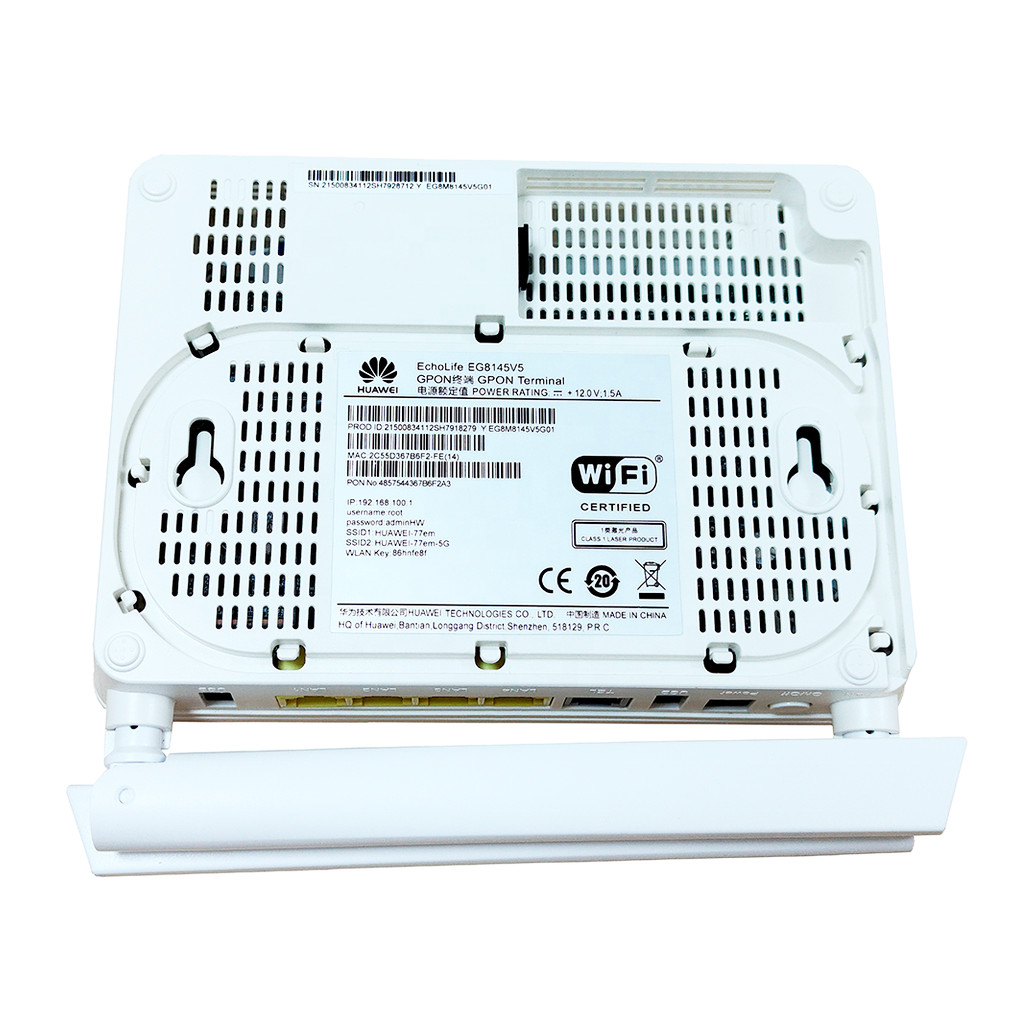

Huawei Echolife EG8145V5 Product Photo:
Huawei Echolife EG8145V5 Feature:
- Plug-and-PlayL Configurations are automatically delivered by the network management system so on-site commissioning is not required.
- Energy Efficient: Integrated PON, voice, gateway, and LSW modules, with up to 25 percent power savings.
- Comprehensive Triple-Play Service: The ONT provides abundant ports to implement multiple access services, including home network-attached storage, internet access, and video services, providing users with a comprehensive triple-play service.
- Terminal GPON ONT class B+
- Fiber optic connector port GPON SC/ UPC
- 4 RJ-45 10/100/1000 Mbps Gigabit Ethernet LAN ports
- 2 x USB
- 1 POTS phone port (1x POTS RJ11)
- Dual-band 2.4 GHz and 5 GHz AC Wi-Fi transmission
- Supports modern ac standard and 2x2 mimo dualchain technology
- Maximum theoretical throughput is up to 300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band
Huawei ONU Main Catalogy:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
