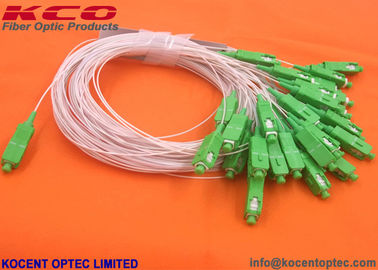

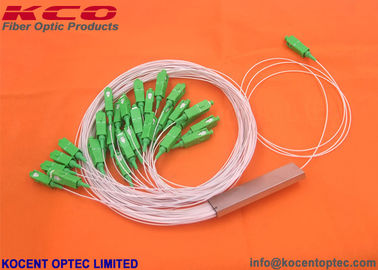

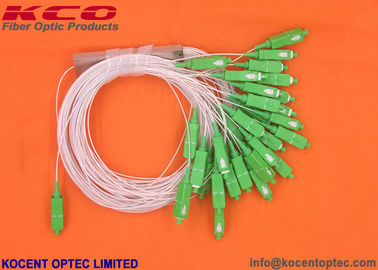

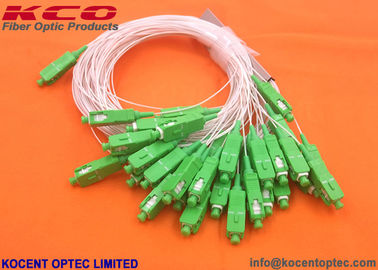

Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector

  • Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector
  • Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector
  • Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector
  • Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector
  • Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PLC-Mini-132SCA-0.9-1.0-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steelless Tube Type Length 1.0m (ex-work)
Splitter Type 1*32 1x32 Split Way 1 Way Input & 32 Way Output
Connector SC/APC Cable 0.9mm
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description
1x32 PLC Fiber Optic Splitter Mini 0.9mm 1.0m Pigtail SC/APC For Splitter Box Closure

1x16 Optic Fiber PLC Splitter Mini Blockless Type With SC/APC Adapter FTTH Splitter Box

Kocent Optec Limited provides OEM service for all types of fiber optic splitter products including Mini blockless type splitter, ABS box type splitter, LGX box type Splitter, rack mount type splitter and distribution box type splitter.

With a closed supply chain, we can supply splitters and related products such as patch cords, pigtails, adapters, termination boxes, splice boxes, attenuators, fast connectors, and more.

Product Overview

The 1x32 Splitter Planar light-wave circuit splitter (PLC Splitter) is an optical power management device fabricated using silica optical waveguide technology. It features wide operating wavelength range, excellent channel-to-channel uniformity, high reliability, and compact size, making it ideal for FTTX PON applications.

Quick Specifications
Parameter Value
Type Mini Blockless Steelless Fiber Optic Splitter PLC
Configuration 1x32
Pigtail cable diameter 0.9mm
Pigtail tube color Ex-work: white; Optional: yellow, multi-color
Pigtail length Ex-work: 1.0m; Optional: 0.3m, 0.5m, 1.5m, 2.0m, 3.0m
Connector Ex-work: SC/APC; Optional: w/o connector, SC/UPC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, E2000
Packing 1pc/bag; 50pcs/small box
Technical Specifications
Parameter 1x4 1x8 1x16 1x32 1x64
Operating wavelength range (nm) 1260-1650
Max. Insertion Loss (dB)* ≤7.3 ≤10.6 ≤13.8 ≤16.5 ≤21
Loss Uniformity (dB)* ≤0.5 ≤0.8 ≤1.0 ≤1.5 ≤2.7
PDL (dB)* ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.3
Return Loss (dB)* ≥50
Directivity (dB)* ≥55
Storage Temperature (°C) -40 to +85
Operating Temperature (°C) -40 to +85
Fiber Type SMF-28
Key Features
  • High quality steel sheet construction
  • Modularized design for easy installation and maintenance
  • Low insertion loss and high return loss
  • Compact design with excellent channel-to-channel uniformity
  • Wide operating wavelength range (1260nm to 1650nm)
  • Wide operating temperature range (-40°C to 85°C)
  • Available in 1 & 2 input channels with 4, 8, 16, 32 and 64 channel options
  • High reliability and stability
  • Compliant with Telcordia GR-1209-CORE-2001 and GR-1221-CORE-1999
  • RoHS compliant
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
OEM/ODM Service

We offer custom branding services for your goods including cables, packaging bags, labels, and more. Our OEM and ODM service is ready to accommodate your specific requirements.

Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector 0
Packing & Shipping

Packing: Standard export packing including carton boxes, wooden boxes, and wooden pallets.

Shipping Options:

  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight
Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector 1 Mini Blockless PLC Fiber Optic Splitter 1x32 with 0.9mm Pigtail and 1.0m Length SC/APC Connector 2
