OM4 LSZH Violet Pink MPO MTP Trunk Cable and MPO MTP Patch Cord for Data Center

  • OM4 LSZH Violet Pink MPO MTP Trunk Cable and MPO MTP Patch Cord for Data Center
  • OM4 LSZH Violet Pink MPO MTP Trunk Cable and MPO MTP Patch Cord for Data Center
  • OM4 LSZH Violet Pink MPO MTP Trunk Cable and MPO MTP Patch Cord for Data Center
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-8LC-OM3-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Type MPO, MTP Other Type LC, FC, SC
Mode Single Mode 9/25 Cover PVC, LSZH, Customized
Insertion Loss 0.35dB Return Loss 60dB
Highlight

qsfp breakout cable

,

breakout fiber optic cable
Leave a Message
Product Description
Product Overview

The Multimode OM4 MPO/MTP Trunk Cable is a high-density fiber optic breakout cable designed for demanding data center and enterprise network environments. Featuring a 3.0mm LSZH round main cable with 2.0mm breakout legs, this cable is available in 12-fiber, 24-fiber, and 48-fiber configurations with a distinctive violet/pink jacket color for easy OM4 identification.

KOCENT OPTEC LIMITED specializes in passive fiber optic products, and the MPO/MTP fiber breakout cable is one of our core advantage products. For any questions about this product, please contact us via our hotline telephone or email at any time.

About MTP/MPO Fiber Optic Patch Cords
  • MPO/MTP single mode 3.0mm fiber optic trunk cables
  • MPO/MTP fiber optic harness patch cables
  • MTP is a high-density optical fiber pre-connect system, generally used in three key areas:
  • Data center applications with high-density environments
  • Optical fiber to the building (FTTB)
  • Internal connector applications in fiber equipment
Product Description

MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end.

The main cable is typically a 3.0mm LSZH round cable with 2.0mm breakout legs. Both female and male MPO/MTP connectors are available; male type connectors include alignment pins.

MTP/MPO harness cables are designed for high-density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. The MTP/MPO harness cables are terminated with MTP/MPO connectors on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end, meeting a variety of fiber cabling requirements.

All MPO/MTP connectors we use are USConec brand. All Kocentoptec MPO/MTP fiber patch cables are compliant with IEC-61754-7 and TIA-604-5 (FOCIS-5) standards.

We offer both Standard type and Elite type. For the jacket cable, we can provide 3.0mm round cable as well as flat jacketed ribbon cable or bare ribbon MTP cables.

We offer single mode and multimode MTP fiber optic patch cables, custom-designed MTP fiber optic cable assemblies, and 9/125, 50/125, 62.5/125, SM, MM, Simplex, Duplex configurations. 12-core, 24-core, and 48-core MTP/MPO patch cables are all available.

Applications
  • FTTH, CATV, LAN, MAN, WAN, Test & Measurement
  • Video transmission, Data transmission
  • Active Device Termination
  • Premise Installations
  • Telecommunication and Data Processing Networks
  • Industrial and Medical
  • Systems Integration for Long Haul, Metro, and Access Networks
Key Features
  • Single mode and multimode (flat) APC (8-degree angled) available
  • High fiber density (maximum 24 fibers for multimode)
  • Fiber count per connector: 4, 8, 12, 24
  • Insert/Pull latching connector
  • High reflection loss with APC
  • Complies with Telcordia GR-1435-CORE specification and RoHS standard
Product Images

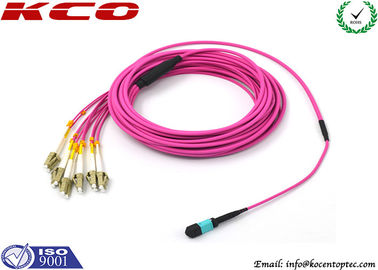

OM4 MPO MTP trunk cable with violet pink LSZH jacket showing 12-fiber breakout configuration Close-up view of MPO MTP connector end face with alignment pins on OM4 multimode fiber cable OM4 MPO MTP fan-out cable assembly with LC breakout legs and pink color-coded jacket
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Max. Insertion Loss Elite Low Loss: ≤0.35 dB
Standard: ≤0.75 dB		 Elite Low Loss: ≤0.35 dB
Standard: ≤0.75 dB		 Elite Low Loss: ≤0.35 dB
Standard: ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-Pull Test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-Tensile Force 15 kgf
Ordering Information

MTP/MPO fiber optic patch cord ordering format example:

MPO/PC - MPO/PC - SM - 12CORE - 2M - LSZH

① Connector type   ② Ferrule end-face   ③ Core type   ④ Fiber quantity   ⑤ Cable length   ⑥ Cable type

  1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Single-mode (SM: 9/125μm), Multimode (MM: 50/125μm or 62.5/125μm)
  4. Fiber Quantity: 4 core, 8 core, 12 core, 24 core
  5. Cable Length: 1, 2, 3 meters or customized
  6. Cable Type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
Packing
MTP MPO patch cable packaging showing protective coil winding and labeled bag
OEM/ODM Service

Our OEM and ODM services are always ready. If you want to display your own brand logo on the product cable, product package, or rack mount, it is no problem at all. Our OEM service is always ready to serve you.

Shipping
  • By International Express: TNT, DHL, UPS, special line express, etc.
  • By Air: CA, ZH, CZ, AA, AC, BA, etc.
  • By Sea
