Fiber Optic Polishing Machine for 8-24 Connectors with 50dB Return Loss and UPC APC PC Ferrule Support

  • Fiber Optic Polishing Machine for 8-24 Connectors with 50dB Return Loss and UPC APC PC Ferrule Support
  • Fiber Optic Polishing Machine for 8-24 Connectors with 50dB Return Loss and UPC APC PC Ferrule Support
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-20A
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 10,000 set/ month
Product Details
Ferrule UPC, APC, PC Connector SC, FC, LC, ST, MTRJ, DIN, Etc
Connector No. 8~24 Connectors Ferrule Type 2.5um, 2.0um, 1.25um
Return Loss 50dB Libration 1.0g: 5~100Hz 45min
Highlight

fiber optic cutting machine

,

optical fiber polishing machine
Leave a Message
Product Description
Product Overview

The KCO-20A is a square-pressure fiber optic polishing machine designed for high-volume production of patch cords and pigtails. We supply brand-new polishing machines in both square and central configurations, and we also offer OEM and ODM services — including custom branding on the machine and packaging. Every machine comes with a 1-year warranty. Replacement jigs and tools are available at any time. Contact us by phone or email for more information.

Key Features
  • Processes most standard fiber optic connectors: FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MT-RJ, E2000, and more
  • Four-corner pressurization design ensures stable jig installation
  • Compact footprint
  • Excellent connector end-face polishing quality
  • Built for volume production — polishes 18 to 40 connectors per cycle
  • Saves polishing material and reduces grinding costs
  • Constructed from high-quality hardened steel S136
Polishing Material Specifications
No. Material Type Remark
1 ZrO2 Ceramic Ferrules φ2.5mm, φ2.0mm, φ1.25mm PC, APC
2 Quartz capillary φ1.8mm Plane, inclined plane and spherical surface
3 Glass materials φ1.0mm, φ10.0mm —
4 Stainless steel and titanium alloy φ3.0mm, φ2.5mm —
5 Colophony material MT-RJ, MPO, MPT etc. —

Remark: Users should use the recommended polishing liquid and polishing films for the KCO-20A. We cannot guarantee polishing quality if other types of polishing liquid or films are used.

PC/UPC (R20) Standard Polishing Results
Polishing Process: 4 processes (excluding "Remove Glue")
Return Loss: ≥50 dB
Top Curvature: 10–25 mm
Top Excursion: ≤50 nm
Core Hollow: ≤0.1 μm
Surface Roughness: ≤50 nm
Technical Parameters
Machine Size: L240 × W240 × H260 mm
O.D. of Rotation Plate: 127 mm (5 inch)
Time Settings: 99 min 99 sec (max)
Speed for Rotation Plate: 90 rpm
Height of Plate Jumpiness: <10 μm
Pressure Configuration: 21–36 N/cm²
Work Temperature: 10°C–40°C
Relative Humidity: 15%–85%
Noise: Unloading <50 dB
Libration (Working): 0.25g, 5–100 Hz, 10 min
Libration (Stopping): 0.50g, 5–100 Hz, 10 min
Power Input: 220–230 VAC, 50/60 Hz
Electric Power: 40 W
Net Weight: 24 kg
Product Image

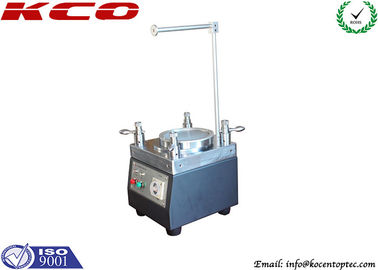

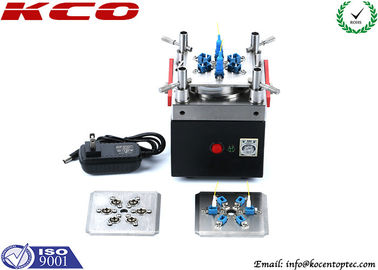

KCO-20A square pressure fiber optic polishing machine for patch cord and pigtail production
Storage Conditions
Temperature: -40°C–85°C
Relative Humidity: 15%–85%
Libration: 1.0g, 5–100 Hz, 45 min
Compatible Polishing Jigs
No. Model Description Remark
1FC-PC-20FC/PC connector style jig, 20 positionsφ2.50mm, 20 positions
2ST-PC-20ST/PC connector style jig, 20 positionsφ2.50mm, 20 positions
3SC-PC-20SC/PC connector style jig, 20 positionsφ2.50mm, 20 positions
4FC-PC-24FC/PC connector style jig, 24 positionsφ2.50mm, 24 positions
5ST-PC-24ST/PC connector style jig, 24 positionsφ2.50mm, 24 positions
6SC-PC-24SC/PC connector style jig, 24 positionsφ2.50mm, 24 positions
7MU-PC-24MU/PC connector style jig, 24 positionsφ1.25mm, 24 positions
8LC-PC-24LC/PC connector style jig, 24 positionsφ1.25mm, 24 positions
9MU-PC-40MU/PC connector style jig, 40 positionsφ1.25mm, 40 positions
10LC-PC-40LC/PC connector style jig, 40 positionsφ1.25mm, 40 positions
11FC-APC-18FC/APC connector style jig, 18 positionsφ2.50mm, 18 positions
12SC-APC-18SC/APC connector style jig, 18 positionsφ2.50mm, 18 positions
13MU-APC-18MU/APC connector style jig, 18 positionsφ1.25mm, 18 positions
14LC-APC-18LC/APC connector style jig, 18 positionsφ1.25mm, 18 positions
15MTRJ-18MTRJ connector style jig, 18 positions18 positions
16MPO-18MPO connector style jig, 18 positions18 positions
Packing

Packed according to export standard.

Export-standard packing for KCO-20A fiber optic polishing machine
OEM / ODM Service

Our OEM and ODM services are always ready. If you want your own brand logo on the product cable, product package, or rack mount, that is no problem at all. Our OEM service is always ready to serve you.

Shipping
  • By international express: TNT, DHL, UPS, special line express, etc.
  • By air: CA, ZH, CZ, AA, AC, BA, etc.
  • By sea
