FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST

China FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST supplier
FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST supplier FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST supplier

Large Image :  FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: KCO-FDB-32S

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: carton box, wooden pallet
Delivery Time: 7~14 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 pcs/ month
Contact Now
Detailed Product Description
Material: ABS+PC Insertion Loss: 0.10dB
Return Loss: 60dB Connector: SC, ST, LC, FC, E2000, Etc
Application: Outdoor, Wall Mount, Pole Mount Capacity: 32 Cores, 1x32 Splitter

FTTH CATV 1*32 Fiber Optic Splitter Box 24 Ports Terminal FDB Box Anti-UV Waterproof SC LC FC ST



Quick information:

Item: Outdoor Water Proof Fiber Optic Terminal Splitter Distribution Box FDB Box
Part Number KCO-FDB-32S
Material PC + ABS
Size 296*335*mm
Weight 1.80kg
Cable port 2 input and 24 output cable ports
Cable diameter < 24 cm
Accessories heat shirk tube, fiber optic splitter, fiber optic adapter, Outer box
Application Splitter 1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*12, 1*16, 2*16, 1*32 fiber optic splitter and other
Application Adapter SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, E2000, etc
Application Outdoor, Indoor, FTTH, CATV, LAN, WAN, ...
Water-proof level IP65
Anti-UV Yes



Over view:

- KCO-FDB-32S is the FDB fiber optic splitter terminal box, special design for outdoor application with Anti-UV and water-proof function.

- It is widely used in FTTH access network, Telecommunication network, CATV network, Data communication network and Local Area Network (LAN).

- Its' mainly feature have:

+ Industry standard user interface.

+ Made of high impact plastic.

+  Can accinnidate 1*2, 2*2, 1*4, 2*4, 1*8, 2*8, 1*12, 1*16, 2*16, 1*32 fiber optic splitter.

+ Anti-UV, high impact resistant and water-proof

+ Up to 24 FTTH drop cable ports.

+ Wall mountable and pole mountable.

+ 2 inlet ports and 24 outlet ports.



Product Features
- Wall mounted for indoor or out door, white color, graceful style and good adaptability to environment.
- Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
- Anti-UV, wet-proof, water-proof, dust-proof, anti-aging.
- Fit for 1x4, 1x8, 1x16 and 1x32 PLC splitter assembly.
- It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole.
- The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
- Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.



Product picutures:

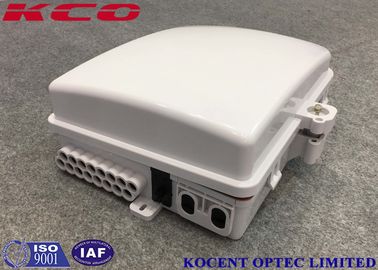

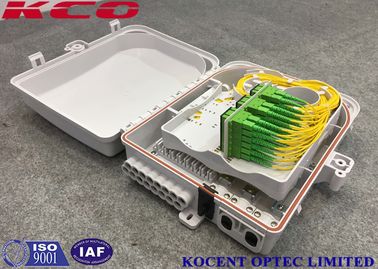

FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST

FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST

FTTH CATV 1*32 Fiber Optic Terminal Box FDB Box Waterproof SC LC FC ST



Otherwise of this model of FDB splitter box, we also can supply the FDB box with capacity 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 32 ports, ... that can install 1:2 splitter, 1:4 splitter, 1:6 splitter, 1:8 splitter, 1:16 splitter, 1:32 splitter and also 1:64 splitter.

Please contact with our sales team to get more information about thesr products.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
