SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm

Good quality Fiber Optic Patch Cord for sales
Good quality Fiber Optic Patch Cord for sales
I'm Online Chat Now

SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm

China SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm supplier
SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm supplier SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm supplier SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm supplier

Large Image :  SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO
Certification: ISO9001, RoHS
Model Number: FAST-55/60-SC-UPC

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, carton box, wooden pallet
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Type: FAST SC Color: Blue, White
Insertion Loss: 0.2dB Return Loss: 55dB
Mode: Single Mode, Multi Mode Length: 55mm, 60mm

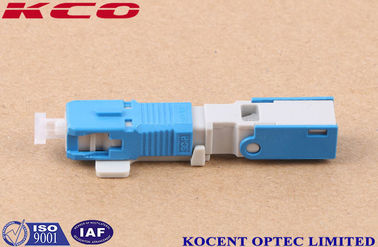

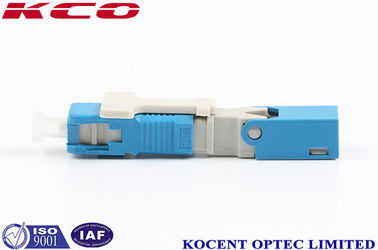

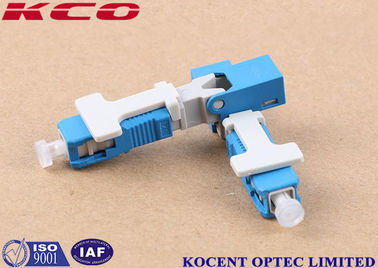

SC/UPC Fiber Optical Fast Connector, SM/MM, Field Assembly Connector 55mm/60mm



Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.



Features



1. Factory-installed fiber stub

2. No epoxy or polishing required

3. Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splice storage

4. Eliminates cable excess length and pigtail splice storage

5. Cost effective



Application:

1. CATV

2. Telecommunication networks

3. Test equipment

4. Local Area Networks(LANs)

5. Data processing networks

6. Other industry and military applications



Specification

Fast Connector Specification
Mode SM   MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB

Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

































SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm

SC/UPC Fiber Optical Fast Connector SM/MM , Field Assembly Connector 55mm/60mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
