|Insertion Loss:||0.2dB||Return Loss:||55dB|
|Mode:||Single Mode, Multi Mode||Length:||50mm|
ftth fast connector,
quick connect fiber optic connectors

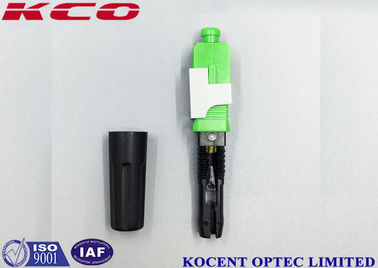

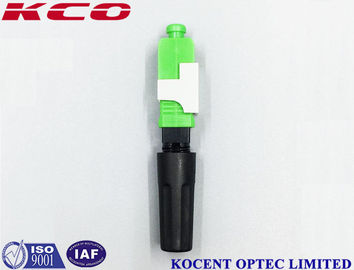

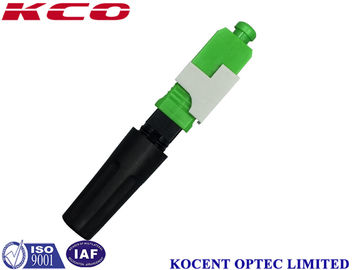

Green FTTH Solution Product SC /APC Fast Connector, Field Assembly Connector, 55mm 60mm
Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.
1. Twin end-face of pre embedded fiber is polished in the factory..
2. Fiber optics is aligned in V-groove through the ceramic ferrule.
3. Side cover design provide complete preservation of the matching liquid.
4. Ceramic ferrule with pre-embedded fiber is polished to APC.
5. Length of the FTTH cable is controllable
6. Simple tooling, easy operation, portable style and reusable design.
1. Quick and easy fiber termination in the field pection.
2. Easy for assembling with mechanical splice and no polishing
3. Easy for learning technology by a simple assembling method (within 1 and half minutes)
4. Minimize the defect rate by features of removal and reusable.
5. Applicable to bow-type drop cable and 2.0/3.0 indoor cable, telecom cable
2. Telecommunication networks
3. Test equipment
4. LAN, MANS, WANS
5. Data processing networks
6. Fiber to the home, FTTX
|Cable Scope||3.0 x 2.0 mm Bow-type Drop Cable|
|Fiber Diameter||125μm ( 652 & 657 )|
|Operation Time||about 15s(exclude fiber presetting)|
|Insertion Loss||≤ 0.25dB(1310nm & 1550nm)|
|Return Loss||≤ -45dB|
|Reusable Times||>10 times|
|Tensile Strength||>5 N|
|Tighten Strength of Coating||>10 N|
|On-line Tensile Strength Test (20 N)||IL ≤ 0.3dB|
|Mechanical Durability(500 times)||IL ≤ 0.3dB|
|Drop Test(4m concrete floor, once each direction, three times total)||IL ≤ 0.3dB|
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
