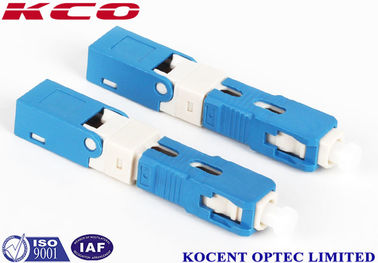

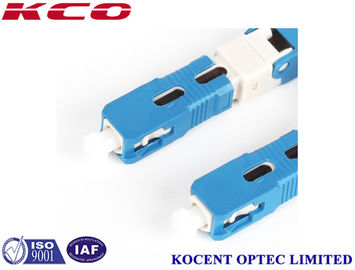

blue SC /UPC Fiber Optic Fast Connector 2.0mm 3.0mm FTTX Solution Product

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-SC-UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST SC Color Blue
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode Length 50mm
High Light

field installable fiber optic connector

,

quick connect fiber optic connectors

Leave a Message
Product Description

2.0mm 3.0mm FTTX Solution Product SC /UPC Quick Connector, Field Assembly Connector​



Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.



This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.



Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly.



1. Twin end-face of pre embedded fiber is polished in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.



Features



1. Quick and easy fiber termination in the field pection.

2. No special assembling tool
3. eusable and repeat operation times are up to 300

4. Minimize the defect rate by features of removal and reusable.

5. Applicable to bow-type drop cable and 2.0/3.0 indoor cable, telecom cable





Application:

1. CATV

2. Telecommunication networks

3. Other industry and military

4. LAN, MANS, WANS

5. Data processing networks

6. Fiber to the home, FTTX





Specification

Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

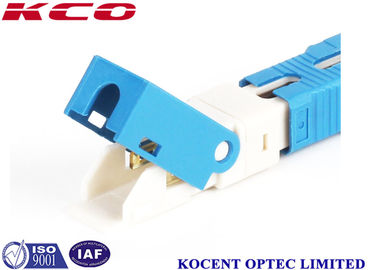

blue SC /UPC Fiber Optic Fast Connector 2.0mm 3.0mm FTTX Solution Product 0
