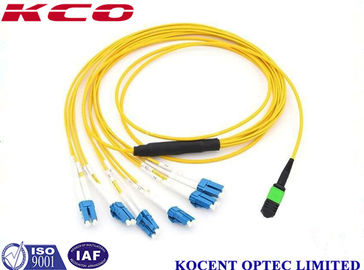

MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV

  • MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
  • MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
  • MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO Connector 2 MPO, LC, SC, FC, ST
Fiber 8, 12, 24 Fibers Insertion Loss 0.35dB
Return Loss 60dB Wave Length 1260~1650nm
High Light

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description

MPO MTP APC Fiber Optic Patch Jumper Cord SM MM OM1 OM2 OM3 OM4 OM5



Product detail:

Connector side A: MPO, MTP

Connector side B:  MPO, MTP, FC, LC, ST, SC, E2000, MTRJ, ...

Cable fiber count: 8 cores, 12 cores, 24 cores, ...

Cable diameter: 2.0mm, 3.0mm, ...

Cable Length: customized

Fan-out kits: available

Break-out kits: available

Cable sheath: PVC, LSZH, TPU, ...



Applications:

- Apply for CATV, LAN, Telecom network, test equipment
- CATV
- Telecommunication networks
- Active device termination
- Metro
- Local Area Networks(LANs)
- Test equipment
- Premise installations

Features:
- Various connector types available
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
- Standard: Telcordia GR-326-CORE

Descriptions:

- The single-mode and multimode MPO products are multi fiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.
- MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12 or 24 fibers.
- MTP/MPO multi-fiber trunk cables are usually in mini-round cables and ribbon cables, with fanout kits broken down into 2~24 fiber 0.9mm or 2.0mm tails with connector LC, SC, ST, FC, etc.

- Cable total length, fanout length, connector type are customized.



Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf



Product Construction:

MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV 0

A: MPO connectot

L: Total length

L1: Fanout length

B: Connector ( FC, LC, ST, SC, ...)



Products Photo:

MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV 1

MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV 2



MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV 3

MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV 4



Ordering Informations:

MPO/PC–MPO/PC-SM-12CORE–2M-LSZH

① ② ③ ④ ⑤ ⑥

Notices:

①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

②Ferrule End-face: PC, UPC, APC

③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

④Fiber Quantity: 4 core, 8 core, 12 core, 24 core

⑤Cable Length: 1, 2, 3 meter or customized

⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

MTP APC MPO MTP Patch Cord Jumper Cable 1260~1650nm Wave Length Apply For CATV 5
