5mW Fiber Optic Tools Mini VFL Visual Fault Locator Cable Tester Red Laser Pen KCO-LP-05

Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-LP-05
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-LP Testing Length <5km
Output Power 5mW Testing Fiber Single Mode SM, Multimode MM
Weight 68g Size L120mm×W33mm×H30mm
High Light

fiber optic accessories

,

fiber optic tools and equipment

Leave a Message
Product Description

Optical Fiber Mini VFL Visual Fault Locator Fiber Optic Cable Tester

Red Laser Pen KCO-LP-05


The KCO-LP Series Mini Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator.
A Visual Laser Source is usually used to inspect the damaged or broken point of a optical fiber, cable, patchcord and etc. If the inspected fiber does have a defect, user could find the visual laser at the broken or damaged point.

The KCO-LP Series Mini Visual Laser Source is suitable for both single mode and multimode fibers. The performance of the visual laser source will act a little different on different fiber coat and color.
KOCENT OPTEC LIMITED can supply the VFL with 5mW, 10mW, 20mW, 30mW and 50mW. It has 3 colors to choose: silve, black and golden. Use high quality Aluminum alloy. It is easy to use and small size.



Corresponding table:

P/N Output Power Testing length
KCO-PL-01 1mW 3km~5km
KCO-PL-10 10mW 10~12km
KCO-PL-20 20mW 14km
KCO-PL-30 30mW 15km



Specification:

Model KCO-LP-01 KCO-LP-10 KCO-LP-20 KCO-LP-30
Laser Launcher Level① CLASS IIIA CLASS IIIB CLASS IIIB CLASS IIIB
Output Power② ≥1mW ≥10mW ≥15mW ≥30mW
Detecting Range③ About 5km About 12Km About 14km About 15km
CW Mode Battery Life④ About 13 hours About 6 hours About 5 hours About 3 hours
2Hz Mode Battery Life④ About 23 hours About 12 hours About 10 hours About 6 hours
Laser Launcher Type LD
Optical Connector universal 2.5mm adapter (FC/SC/ST)
Output Wavelength 650nm±10nm
Modulation Frequency CW / 2Hz
Power 2*AAA dry batteries
Working Temperature -10℃~+50℃; <90%RH
Storage Temperature -20℃~+70℃; <90%RH
Dimension & Weight L120mm×W33mm×H30mm / about 67.8g
Standard Accessories:
2*AAA batteries, carrying bag, user manual
Optional Accessories:
Male FC to female LC adapter for LC connector



Note:

①It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
②The output power is figured out by multi-mode optical fiber at 23℃±3℃.
③Detecting range will be different with different fibers.
④Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.



Size:

5mW Fiber Optic Tools Mini VFL Visual Fault Locator Cable Tester Red Laser Pen KCO-LP-05 0



Application:

- Test Lab of optical fibers

- Maintenance in Telecom
- Maintenance CATV
- Other Fiber Optic Measurements

- Insert the fiber into VFL through Fiber Connector.

- It can be used as reference of the multi- core cable
- End to end fiber identification
- Identify the breaks and micro-bend of the pigtail/fiber
- Operation



Feature:
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Portable and rugged, easy to use

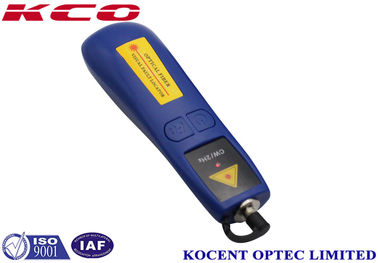

Product pictures:



5mW Fiber Optic Tools Mini VFL Visual Fault Locator Cable Tester Red Laser Pen KCO-LP-05 1



Cost effective:

- The Pen type VFL's extremely high efficiency guarantees prolonged operation with two standard AAA alkaline batteries, typically providing 50 hours of uninterrupted operation.

- Priced to accommodate the tightest budgets, the KCO-VFL-x Pocket Pal is a truly affordable way to locate faults in OTDR dead zones.

- Its effectiveness justifies purchasing one for just about every fiber technician.
- We adopt the new technology for AL composite material make the PEN more light.

- And use import Mitsubishi LD Laser, make the lights signal more gathered and less attenuation



Working picture:

5mW Fiber Optic Tools Mini VFL Visual Fault Locator Cable Tester Red Laser Pen KCO-LP-05 2
