TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device

Good quality Fiber Optic Patch Cord for sales
Good quality Fiber Optic Patch Cord for sales
I'm Online Chat Now

TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device

China TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device supplier
TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device supplier TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device supplier TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device supplier

Large Image :  TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: ISO9001
Model Number: TM203N

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: soft caring case, carton box
Delivery Time: 2~4 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20,000 set/ month
Contact Now
Detailed Product Description
Enterface: FC, SC Light: LD
Working Time: 24 Hours Wavelength 1: 850/1310nm
Wavelength 2: 1310/1550nm Name: VFL OPM 2in1 Testing Device

TM203N VFL OPM Visual Fault Locator Fiber Optical Power Meter 2in1 Cable Testing Device



TM203N is 2in1 device that have VFL (Visual Fault Locator) function and OPM (optical power meter) function.

It is a good device for field operation.

The VFL function can choose power 1mW, 10mW, 20mW, 30mW, and 50mW.

OPM function can choose:

Type A:-70~+10 Type C:-50~+26

We accept OEM service for this product.

Logo print on lable is free with MOQ 10pcs

Logo laser print is free for quantity more than 100pcs



Avantage:

Self Calibration
Self Auto Off
Stable VFL Output
Set the REF Value
Real-time display of the power consumption
Interchangeable connectors: FC/ SC



Features
- Self Calibration
- Self Auto Off
- High Accuracy, high ,High sensitivity, high linearity-
- Stable VFL Output
- Set the REF Value
- Real-time display of the power consumption
- Interchangeable connectors: FC/ SC
- Rubber Out shell, increased the protective properties for field work



Applications:
- Fiber Optic CATV Engineering.
- Optical fiber communication engineering.
- Research on Optical Fiber Sensing.
- Production and research of optical devices.
- Other fiber engineering.


Specifications

Optical Power Meter TM203N
Range Type A:-70~+10 Type C:-50~+26
Wavelength 800~1700nm
Calibrated Wavelength 850/1300/1310/1490/1550/1625nm
Detector InGaAs
Accuracy <±3% (-10dBm/22℃)
Resolution 0.01dBm
Working Temperature ℃ -10~+50
Storage Temperature ℃ -20~+70
Humidity 90%(+30℃)
Connector FC/SC(ST LC as optional )
Power Supply 2pcs AA batteries
Battery Life @ OPM 140hours
Battery Life @ VFL 50hours
Auto-off 10minutes
Weight 180g
Dimensions 158×82×29mm
VFL Wave: 650nm
Output Power: 1/10/20/30/50mw



Product size:

TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device

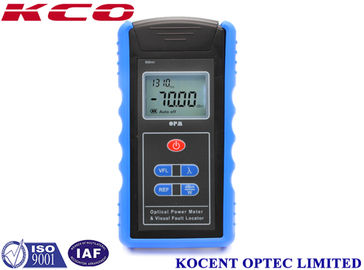

Product detail:

TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device

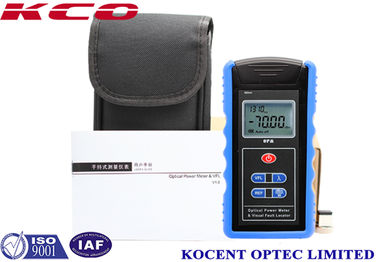

Packing list:

1 VFL Power Meter
1 Soft case
1 AA batteries
1 FC Connector
1 SC Connector
1 VFL FC connector
1 Manual
1 BOX

TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device

Packing way:

- According to export standard

- By carton box, wooden pallet, ...



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

TM203N VFL OPM Fiber Optic Tools Visual Fault Locator Power Meter 2 In1 Cable Testing Device
