1200N GJYFJH Non Armored Tachtical Field Fiber Optic Cable TPU LSZH Material 7.0mm

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-GJYFJH-7.0-TPU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PVC, LSZH, TPU Name Outdoor Field Fiber Optic Cable
Length 2km~5km Each Roll Application Indoor, Outdoor Or Customized
Fiber Single Mode, Multimode, OM3, OM4, OM5 Cores 2 Cores To 4 Cores
Color Black Diameter 7.0mm
High Light

optical fibre cable

,

indoor outdoor fiber optic cable

Leave a Message
Product Description

2fo 4core FTTA 7.0mm GJYFJH

Indoor Outdoor Field Army Military Fiber Optical Cable Non-armored TPU LSZH



Characteristic:

- Flexibility ,easy to storage and operation

- Polyurethane sheath provide

- Wear resistant, oil resistant, low temperature flexibility

- Aramid yarn strength with stable tension .

- High tensile and high pressure to prevent rat bite, cutting, bending.

- Cable soft, good toughness, installation, maintenance convenient.



Storage/Operating Temperature: -40°C to + 70°C



Standards: Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11



Specification:



Fiber

counts

Cable

diameter (mm)

Weight

(kg/km)

Tensile strength(N)

Crush

Resistance(N/100mm)

Minimum bending

radius (mm)

      Short-term Long-term Short-term Long-term Static Dynamic
2 7.0 42 600 400 200 300 60 30
4 7.0 43 600 400 200 300 60 30

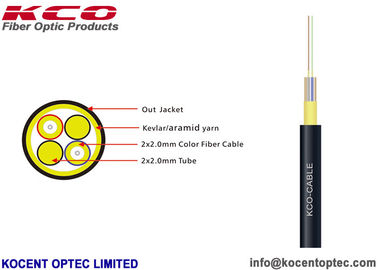

Cable Constructions:
1200N GJYFJH Non Armored Tachtical Field Fiber Optic Cable TPU LSZH Material 7.0mm 0

Application:
- Military communication system
- Passive optical networks (PON)
- Coal, oil, natural gas, geological exploration
- Broadcast television, temporary communication

- FTTx ( FTTH, FTTB, FTTC, FTTA,...)



Introduction:

- GJYFJH Indoor Outdoor Field Army militaty fiber optic cable use as the optical transmission medium with 2.0mm subcable, a layer of aramid yarn is placed ourside the compact fiber to enhance the element.

- The cable is competed with outside jacket.

- Outside jacket material can be: PVC, LSZH, TPU, PE or as customer request.

- Cable fiber can be Single mode G652D, G657A1, G657A2, G657B3, or Multimode OM1, OM2, OM3, OM4 and OM5.

- Cable with small diamerter (4.8mm), light weight, sastify for field operation.



Optical Fiber Parameter
Fiber Type Single mode G652D,G657, G655, Multimode OM1, OM2, OM3, OM4, OM5
Cable Diameter 7.0±0.2mm
Cladding Diameter 125 ± 1μm
Cladding Non-Circularity ≤ 1%
Coating Diameter 245 ± 10μm
Attenuation Coefficient

≤ 0.36dB/km at 1310nm,

≤ 0.22dB/km at 1550nm

Chromatic Dispersion

≤3.5ps/nm/km at 1285~1330nm,

≤18ps/nm/km at 1550nm

Zero Dispersion Wavelength 1300~1322nm
PMD Coefficient ≤ 0.2ps/√km
Weight 28kg/km



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

1200N GJYFJH Non Armored Tachtical Field Fiber Optic Cable TPU LSZH Material 7.0mm 1



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

1200N GJYFJH Non Armored Tachtical Field Fiber Optic Cable TPU LSZH Material 7.0mm 2



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

1200N GJYFJH Non Armored Tachtical Field Fiber Optic Cable TPU LSZH Material 7.0mm 3
