ESC250D APC Green Quick Connect Fiber Optic Connectors IL 0.2dB RL 55dB Interferometer Pass

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ESC250D/APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N ESC250D/APC Color Green
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
High Light

ftth fast connector

,

field installable fiber optic connector

Leave a Message
Product Description

ESC250D APC Green IL 0.2dB RL 55dB Interferometer Pass Optical Fiber Fast Assembly Connector




Techenical Data:
P/N: ESC250D APC
Plug type: SC/APC

Ferrule degree: 8°

Ferrule material: ceramic SCA 0.5
Diameter of fiber: 9/125mm
Fiber Mode: Single Mode G652, G657
IL: less 0.5dB (0.2dB type)

RL: more than 55dB
3D: pass 80%
Use for: 2.0mm×3.0mm & 2.0mm×1.6mm FTTH drop cable



Descriptions:

- The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing.

- The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule.

- Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination.

- The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

- Double V-groove structure design, fiber optic docking is stable and reliable;
- The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
- Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
- Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
- Tensile strength: > 30N / 2min;
- Simple operation, fast construction speed, high installation success rate, long life cycle and simple and convenient maintenance.
- Product size: 52 × 9 × 8.1mm


Specification
ITEM Technical Parameters
Applicable for Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.5dB RL ≤ 5dB



 Feature:
1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss.

Application:
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
​FTTH Outlets
Connection at the desk for LAN environments
Suitable for FTTx butterfly type cable(both square and circle shape are available)

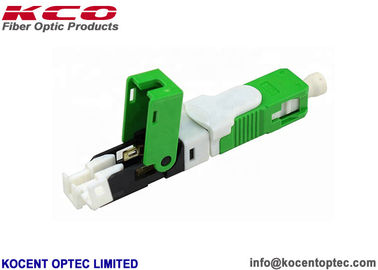

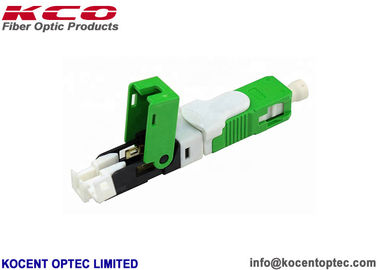

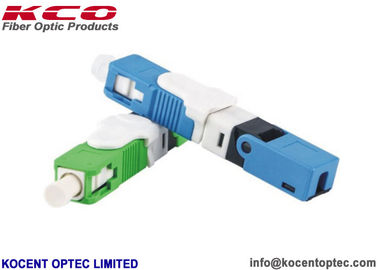

Product photo:



ESC250D APC Green Quick Connect Fiber Optic Connectors IL 0.2dB RL 55dB Interferometer Pass 0

ESC250D APC Green Quick Connect Fiber Optic Connectors IL 0.2dB RL 55dB Interferometer Pass 1
ESC250D APC Green Quick Connect Fiber Optic Connectors IL 0.2dB RL 55dB Interferometer Pass 2

OEM/ODM Service:
​Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
All of our fast connector meet Telecom requirement as Viettel, VNPT, ...
Logo print is free for quantity more than 10k (pcs). Logo Lettering is free for quantity more than 100k (pcs)
Contact with our sales team for your OEM and ODM order.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

ESC250D APC Green Quick Connect Fiber Optic Connectors IL 0.2dB RL 55dB Interferometer Pass 3



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

ESC250D APC Green Quick Connect Fiber Optic Connectors IL 0.2dB RL 55dB Interferometer Pass 4
