FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D

China FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D supplier
FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D supplier FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D supplier FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D supplier

Large Image :  FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO
Certification: ISO9001, RoHS
Model Number: KCO-SOC-SCU

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, carton box, wooden pallet
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
P/N: KCO-SOC-SCU Color: Blue
Insertion Loss: 0.2dB Return Loss: 55dB
3D: Pass Length: 50mm 55mm 60mm



SC/UPC SOC Splice On Fiber Optic Fast Connector 0.9 2.0 3.0mm FTTH FTTA Field Assemby





Description:

Hot melt type optical fiber quick connector is by welding machine will continue to spot welding in the connector tail set, on the surface, not to contact, which is beautiful, solid.

- The splicer, connection point loss than the cold little, while avoiding the matching solution aging, reducing maintenance costs. Suitable for long-term use, so that the fiber to the user becomes efficient and stable.
- At present, in FTTH fiber to households in the engineering, optical fiber quick connector used most widely is used for cold connection mode, the cold junction with embedded fiber and through two ways.

- However, the fiber cold bonding technology, there are some problems: the cold products matching fluid too much dependence of; products of cutting knife, construction personnel of the fiber cutting technology and the operation of skilled earnest request is very high; the accuracy of the inspection of butt and the quality of the connection is able to assess.

- Hot melt type quick connector is directly with grinding good in core connector directly and the butterfly shaped cable, with a diameter of 3.0 mm in diameter 2.0mm, diameter of 0.9mm melting connected and splice inside the connector end, welding without additional protection.

- Compared with the mechanical type quick connector, site Hot quick connector can improve the optical performance of the connector, and achieve operation 100% pass rate, prolong the service life of the connector, and reduce the maintenance cost.

- Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion.

- The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.

- Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.



Quick Information:

P/N: KCO-SCO-SCA

IL: less than 0.2dB

RL: more than 50db

Packing: 1pc/ small bag, 100pcs/small box, 2000pcs/ carton



Features

- No special assembly tool

- Can be reconnected in the field

- No epoxy or polishing required

- Compatible with both 3mm drop cable and 3x2mm flat cable

- Fast and easy installation.
- Field-termination connector with no epoxy or polishing required
- No matching gel enables low reflection and high reliability
- Splicing point is inside of the connector. No additional splicing work required
- Easily assembled with one-touch, push-pull system
- Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
- 100% qualified, prolong use life, reduce the Maintenance cost
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability



Technical Data:

Item KCO-SOC-SCU
Suitable Cable OD 2.0mm, 3.0mm, 0.9mm
Optical fiber diameter 125μm
Tight buffer diameter (μm) 900μm
Fiber mode Single & multi mode
Operation time About 120s ( no fiber cut )
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.2dB



Applications:

- Asynchronous Transmission Mode (ATM)

- Passive optical networks (PON)

- Local Area Networks (LAN)

- Cable Television (CATV)

- Fiber to the building (FTTB)

- Fiber To The Office (FTTO)

- Fiber to The Home (FTTH)

- Metro

- Test Equipment

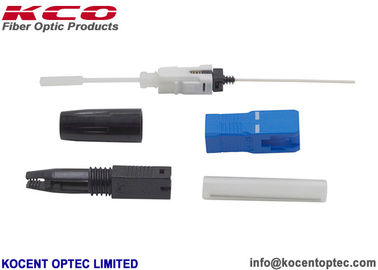

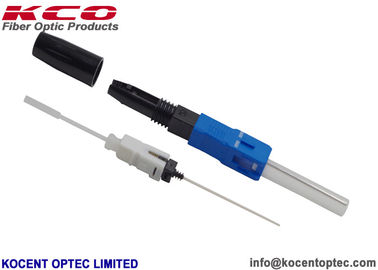

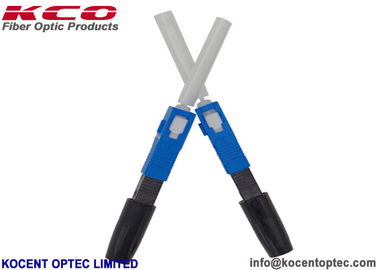

Product photo:
FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D

Packing:
FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D




Usage:

FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D



Delivery Time:

- Material Preparation Time: 3 days (or inventory)

- Production & Assembly Time 7 days

- Testing & Packaging Time: 2 days

- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.

- The faster delivery could be negotiable.



Factory photo:

Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
Most of our fast connector meet Telecom requirement as Viettel, VNPT, ...

Logo print is free for quantity more than 10k (pcs).

Logo Lettering is free for quantity more than 100k (pcs)

Contact with our sales team for your OEM and ODM order.

FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

FTTH FTTA Field Assembly Connector , SOC Splice On Fiber Quick Connector Pass 3D
