Payment & Shipping Terms:
|Insertion Loss:||0.2dB||Return Loss:||55dB|
|3D:||Pass||Length:||50mm 55mm 60mm|

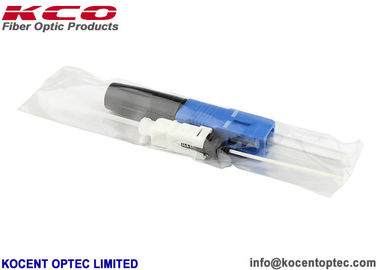

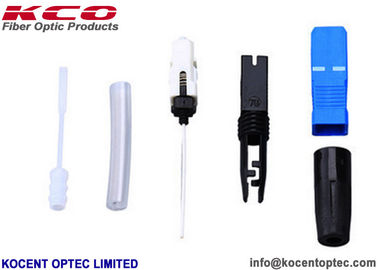

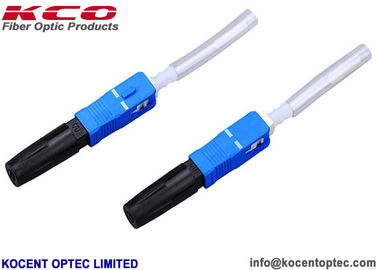

SC/UPC SOC Hot Melt Splice-on Fiber Optical Fast Connector 0.9 2.0 3.0mm G652D G657A
- The 1 ferrule without on-site grinding, can be directly connected with the butterfly cable, Phi 3, Phi 2, Phi f0.9 weld.
- Can achieve high optical performance, the average insertion loss of less than -0.20dB, the return loss is more than 55dB.
- Products in the use of the process is not affected by the environment, the basic optical properties no change, no failure rate, long service life, reduce the cost of late maintenance.
- Tail specific optical fiber "micro bend" structure can be when the tail cable is subjected to violent tension to protect the effective.
- Splice inside the connector on the protection of the heat shrinkable tube, effective to splice protection, ensuring product safety performance and service life
- The rear end of the special stepped up structure, the product of tensile strength is greater than 60N.
- The operation is simple and quick, the operator needs no professional skills.
IL: less than 0.2dB
RL: more than 50db
Packing: 1pc/ small bag, 100pcs/small box, 2000pcs/ carton
- Asynchronous Transmission Mode (ATM)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Fiber to the building (FTTB)
- Fiber To The Office (FTTO)
- Fiber to The Home (FTTH)
- Test Equipment
- No special assembly tool
- Can be reconnected in the field
- No epoxy or polishing required
- Compatible with both 3mm drop cable and 3x2mm flat cable
- Fast and easy installation.
- Field-termination connector with no epoxy or polishing required
- No matching gel enables low reflection and high reliability
- Splicing point is inside of the connector. No additional splicing work required
- Easily assembled with one-touch, push-pull system
- Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
- 100% qualified, prolong use life, reduce the Maintenance cost
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability
|Suitable Cable OD||2.0mm, 3.0mm, 0.9mm|
|Optical fiber diameter||125μm|
|Tight buffer diameter (μm)||900μm|
|Fiber mode||Single & multi mode|
|Operation time||About 120s ( no fiber cut )|
|Insert loss||≤ 0.3dB(1310nm & 1550nm)|
|Return loss||> 40dB|
|Tensile strength||>50 N|
|On-line tensile strength (20 N)||IL ≤ 0.2dB|
|Mechanical durability (500 times)||IL ≤ 0.2dB|
|Drop-off test (drop-off height 4m, once per direction, totally 3 times)||IL ≤ 0.2dB|
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 7 days
- Testing & Packaging Time: 2 days
- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.
Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
Most of our fast connector meet Telecom requirement as Viettel, VNPT, ...
Logo print is free for quantity more than 10k (pcs).
Logo Lettering is free for quantity more than 100k (pcs)
Contact with our sales team for your OEM and ODM order.
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
