|Output Power:||50mW||Testing Fiber:||Single Mode SM, Multimode MM|
fiber optic accessories,
fiber optic tools and equipment

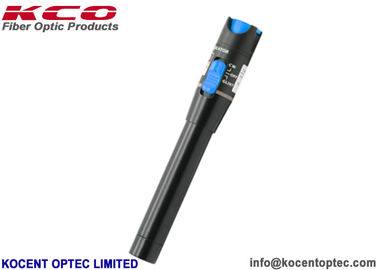

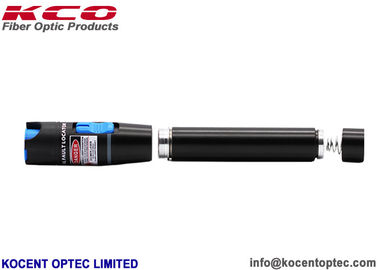

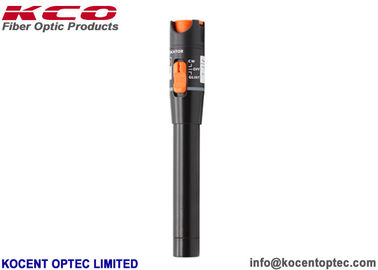

30km KCO-VFL-08-50 Optical Fiber VFL Visual Fault Locator Red Laser Pen 50mW
- Small size, easy to carry
- Measuring range up to 1km-30km
- Easily identify the fiber break-point
- Achieve end-to-end optical fiber identification
- Complete mechanical splice point optimization
- The Pen type VFL's extremely high efficiency guarantees prolonged operation with two standard AA alkaline batteries, typically providing 50 hours of uninterrupted operation.
- Priced to accommodate the tightest budgets, the KCO-VFL-x Pocket Pal is a truly affordable way to locate faults in OTDR dead zones.
- Its effectiveness justifies purchasing one for just about every fiber technician.
- We adopt the new technology for AL composite material make the PEN more light.
- And use import Mitsubishi LD Laser, make the lights signal more gathered and less attenuation
|Wavelength||650nm ± 20nm|
|Output Power||> 1mW||> 10mW||> 20mW||> 30mW||> 50mW|
|Dynamic Distance||2~ 5 km||8~12km||12~15km||18~22km||22~30km|
|Mode||Continuous Wave (CW) and Pulsed|
|Power Supply||AA * 2|
-10 -- +50 °C
20 -- +60 °C
①It is strictly prohibited to direct the human eye and please take precautions to avoid static electricity releasing.
②The output power is figured out by multi-mode optical fiber at 23℃±3℃.
③Detecting range will be different with different fibers.
④Working hours is figured out by 2*AAA batteries at 23℃±3℃, it will be a little different by using different AAA batteries.
- Test Lab of optical fibers
- Maintenance in Telecom
- Maintenance CATV
- Other Fiber Optic Measurements
- Insert the fiber into VFL through Fiber Connector.
- It can be used as reference of the multi- core cable
- End to end fiber identification
- Identify the breaks and micro-bend of the pigtail/fiber
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Portable and rugged, easy to use
OEM/ ODM service:
If you want to print your own brand LOGO on the pen lable or package, it is no any problem. Our OEM service is always ready for you. Please call us or send e-mail to us with your detail inquiry to get more informations.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
