72 Cores 12 Port MPO Cassette MPO Patch Panel 1U Rack Mount for Data Center

  • 72 Cores 12 Port MPO Cassette MPO Patch Panel 1U Rack Mount for Data Center
  • 72 Cores 12 Port MPO Cassette MPO Patch Panel 1U Rack Mount for Data Center
  • 72 Cores 12 Port MPO Cassette MPO Patch Panel 1U Rack Mount for Data Center
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-RM-Cassette-MPO-12LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 LC/UPC, LC/APC Or Customized
Size 480x245x1U Capacity 72 Cores
Color Black, Beige, White Length 0.3m, 0.5m, 1.0m, 1.5m, Customized
Highlight

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

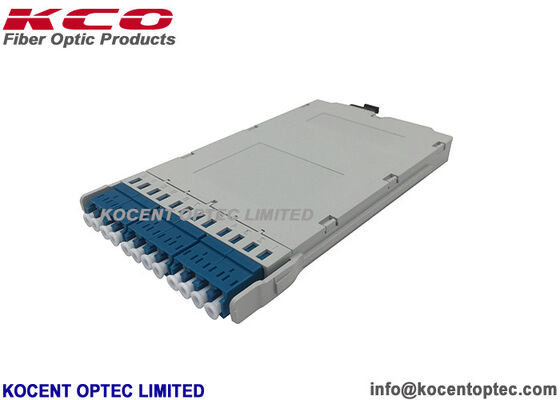

This newly designed MPO cassette is specifically engineered for drawer-type MPO rack-mountable patch panels. Each 1U patch panel accommodates up to 6 cassette units, enabling high-density, high-capacity deployment. In a single 1U rack-mountable patch panel, up to 72 LC ports can be supported.

The drawer-type design allows each unit to be maintained independently, protecting other units during servicing. Manufactured from high-quality plastic material, the cassette is compact and lightweight, reducing transport and shipping costs.

Applications
  • Data centers and pre-terminated installations
  • Telecommunication networks
  • Storage area networking fiber channel
  • High-density architectures
Key Features
  • Integrates fiber patch panel with easy plug-and-play fiber cassette module for optimized cabling management efficiency
  • Lightweight and easy to install
  • Simple installation and operation
  • Available for the installation of FC/SC/ST/LC adaptors
  • Mounts to standard EIA 19'' rack rails
  • Provides a complete system solution for connectivity
  • Delivers higher patch field density in fewer rack units, saving valuable space
  • Assures flexibility and ease of network deployment, moves, adds, and changes
Product Image

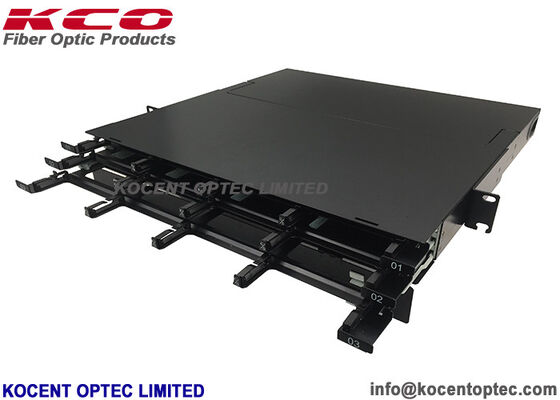

MPO cassette rack mount patch panel with DLC multimode OM3 OM4 OM5 12-port configuration
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Max. Insertion Loss Elite Low Loss Standard Elite Low Loss Standard Elite Low Loss Standard
≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull Test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-tensile Force 15 kgf
Connector Diagram
MTP/MPO connector diagram showing single mode and multimode polish types
OEM/ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

Packing
  • According to standard export packing
  • Carton box, wooden box, wooden pallet
Shipping
  • International express such as UPS, TNT, DHL, FedEx, etc.
  • International air: Shenzhen airline, Hongkong airline, China Airline, Australia Airline, America Airline, etc.
  • By sea: COSCO, HYUNDAI, etc.
  • Standard export port: Shenzhen, Hongkong, Ningbo
