Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways Chanel

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LC/APC-Quad C
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC Material Plastic
Chanel Way 4 Ways Insertion Loss 0.2dB
Return Loss 55dB Fiber Mode Singlemode
P/N KCO-LC/APC-Quad C Color Green
High Light

fibre optic adapter

,

fiber optic adaptor

Leave a Message
Product Description



Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways



Quick Information:

- P/N: KCO-LC/APC-Quad C

- Name: LC/APC Duplex Shutter Adapter
- Fiber type: Single mode (SM) 9/125
- Signal way: quad (4 ways)
- Material: Plastic
- IL: less than 0.2dB
- RL: More than 50dB



Description:

- LC quad fiber optic adapters have an SC Duplex footprint with plastic flanges and are made for our plastic fiber distribution units, loaded fiber patch panels and loaded fiber wall mount enclosures.

- Each fiber coupler fits securely into designated slots and is used to couple LC/PC connections together.



Feature:

- Excellent Temperature stability
- Low insertion loss ,high return loss
- Good repeatability and exchangeability
- Excellent mechanical endurance
- Customer defined specifications
- Compliant with Telcordia,TIA/EIA and IEC



Specification:

Product Name

Green Color Quad LC APC Shutter Adapter

Singlemode Mid Coupler 4 Ways

Part Number KCO-LC/APC-Quad C
Inserion Loss ≤0.3dB
Durability >1000 times
Operating Temp -40~70°C
Material Plastic
Application FTTx, LAN, CATV, Telecom
Certification RoHS, SGS, CE
Connector Type LC-LC
Polish Type

UPC

APC

Fiber Mode

Singlemode;

Multimode Om1;  OM2; OM3; OM4; OM5

Color

SM: Blue,Green

MM: Beige

OM3: Aqua

OM4: Violet

OM5: Lime green

Core 4 cores
Flange with flange/with ear;
Form of sale Neutral/ OEM/ ODM
Use Fiber connection
Custom Design welcom
Sample Lead Time within 7 days after confirmation

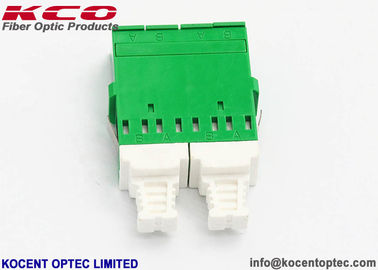

Product pictures:

Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways Chanel 0

Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways Chanel 1

Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways Chanel 2


Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways Chanel 3


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, ...

- Stardard shipping port: Shenzhen, Hongkong, Ningbo


Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways Chanel 4
