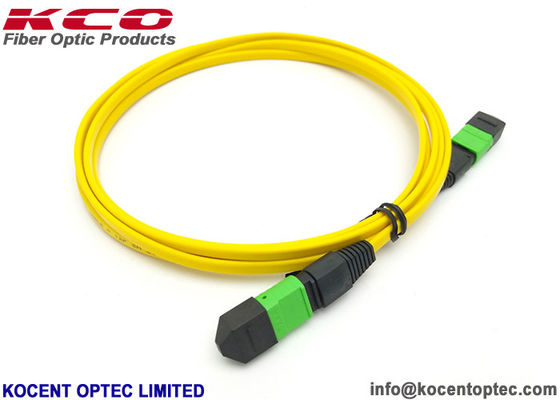

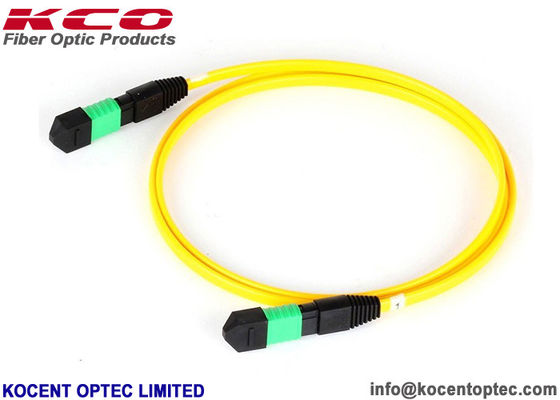

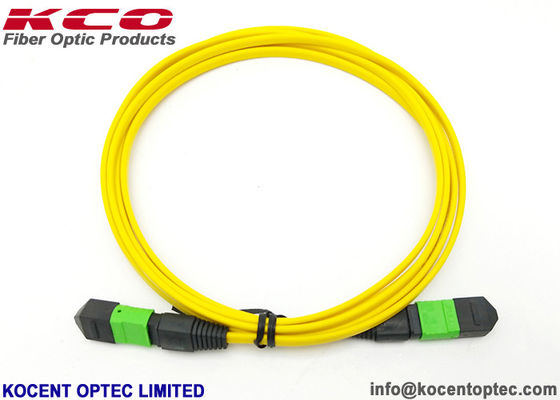

LSZH 8 Core G657A2 MPO MTP Patch Cord Single Mode MPO Trunk Cable Customized Length

Kocent Optec Limited is a leading MPO/MTP fiber optic patch cable manufacturer based in Shenzhen, China. We provide OEM/ODM services for all types and lengths of MPO/MTP patch cables.

Our MPO/MTP patch cables are available in Single Mode and Multimode (OM1, OM2, OM3, OM4, and OM5). Connector options include MPO/MTP as well as LC, FC, ST, SC, E2000, MU, DIN, and MTRJ.

MPO/MTP is a high-density optical fiber pre-connect system generally used in three key areas. MPO/MTP trunk cables interconnect cassettes, panels, or ruggedized MPO fan-outs, spanning MDA, HAD, and EDA zones. They enable rapid deployment of high-density backbone cabling in data centers and other high-fiber environments, reducing network installation and reconfiguration time.

MPO/MTP trunk cables use a compact and rugged microcable structure, available in different colors for SM, MM, and 10G MM. Fiber counts range from 12 to 144. MTP polarity options follow TIA standards: Style A (up), Style B (down), and Style C (up/up).

• CATV
• Active device termination
• Telecommunication networks
• Metro networks
• Local Area Networks (LANs)
• Data processing networks
• Test equipment
• Premise installations
• Wide Area Networks (WANs)
• FTTx (FTTH, FTTO, FTTB, FTTA, and more)

• Available with 8-fiber, 12-fiber, and 24-fiber MPO/MTP connector standards
• Available in OS1/2, OM2, OM3, OM4, and OM5 fiber types
• Connector options include FC, LC, SC, ST, MU, and MTP
• Interface polished types: PC, UPC, and APC
• Available in 08 / 12 / 24 / 36 / 48 / 72 / 96 / 144 fibers
• 100% factory tested
• Discrete connectors are heat-cured and use ceramic ferrules and sleeves
• Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
• Customizable for length, staggering, connector type, breakout style, fiber count, and labeling

OM4 is a laser-optimized 50µm fiber with a 4.7 GHz·km EMB bandwidth designed for 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission.

OM4 fiber has been on the market since 2005, originally sold as premium OM3 fiber. The OM4 cable designation standardizes the nomenclature across all manufacturers, giving customers a clearer understanding of the product they are purchasing.

OM4 fiber is completely backwards compatible with OM3 fiber and shares the same distinctive aqua jacket. It was developed specifically for VCSEL laser transmission and allows 10 Gigabit/second link distances of up to 550 meters (compared to 300 meters with OM3), offering an Effective Modal Bandwidth (EMB) of 4700 MHz·km.

OM3 and OM4 cables are both types of graded-index multimode fiber optic cable, specified under IEEE and TIA/EIA standards. Both are laser-optimized multimode fiber (LOMMF) cables, specially designed for today's high-speed networks.

While they have very similar constructions, OM4 performs over longer distances due to its 4700 MHz bandwidth versus the 2500 MHz bandwidth of OM3 cabling. OM4 is one of the fastest fiber optic cables available. The standard was ratified by TIA/EIA in August 2009, and the IEEE 802.3ba 40G/100G Ethernet standard covering OM3 and OM4 was ratified in June 2010.

Not only do they exhibit great performance, but OM3 and OM4 multimode fiber optic cables are cost-effective options as well. By using these top-of-the-line fiber optic cables, a secured data center not only performs to its fullest capabilities now, but should meet high performance standards for years to come.

*All values specified are with connectors.

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — there is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

According to standard export packing: carton box, wooden box, or wooden pallet.

• International express such as UPS, TNT, DHL, etc.
• International air: CA, AA, EA, etc.
• By sea
