96 Cores 1U Light Weight MPO MTP Patch Panel Rack Mount for OM3 OM4 Fiber Networks

  • 96 Cores 1U Light Weight MPO MTP Patch Panel Rack Mount for OM3 OM4 Fiber Networks
  • 96 Cores 1U Light Weight MPO MTP Patch Panel Rack Mount for OM3 OM4 Fiber Networks
  • 96 Cores 1U Light Weight MPO MTP Patch Panel Rack Mount for OM3 OM4 Fiber Networks
  • 96 Cores 1U Light Weight MPO MTP Patch Panel Rack Mount for OM3 OM4 Fiber Networks
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-1U-144-OM3
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 LC/UPC, LC/APC Or Customized
Size 480x245x1U Capacity 96 Cores
Color Black, Beige Length 0.5m, 1.0m, 1.5m, Customized
Highlight

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

None Module MPO Patch Panel / MTP Rack Mount Angled 144 Fiber Patch Panel LC OM3 OM4. This high-density 1U rack mount patch panel is designed for efficient fiber optic cable management in data centers and enterprise networks.

Key Specifications
Rack Size Standard 19" 1U
Maximum Capacity 144 Cores (12 pcs 12-core MPO to LC Fanout Patch Cable)
Panel Dimensions 480 × 245 × 1U (mm)
Front Face Plate 12 pcs 6-port LC Duplex Adapter Port (changeable to SC, FC, ST, etc.)
Rear Design 12 pcs adapter ports for MPO adapter installation
Connector 1 MPO, MTP Fanout Patch Cable
Connector 2 LC, FC, ST, SC or Customized 8 to 24 Strands Cable
Cable Length 0.3m, 0.5m, 1.0m, 1.5m or Customized
Features
  • Integrates fiber patch panel with easy plug-and-play fiber cassette module for optimized cabling management efficiency
  • Light weight and easy to install
  • Simple installation and operation
  • Available for the installation of FC / SC / ST / LC adapters
  • Mounts to standard EIA 19" rack rails
  • Provides a complete system solution for connectivity
  • Higher patch field density in fewer rack units, saving valuable space
  • Assures flexibility and ease of network deployment, moves, adds, and changes
  • Angled type design for easier maintenance and management
  • None module type saves more cost
Product Images

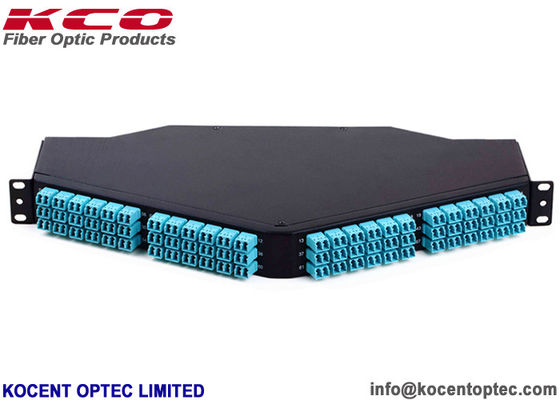

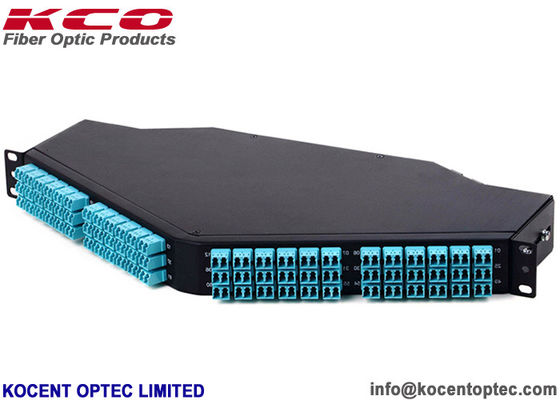

1U MPO MTP rack mount high-density patch panel front view with LC duplex adapters

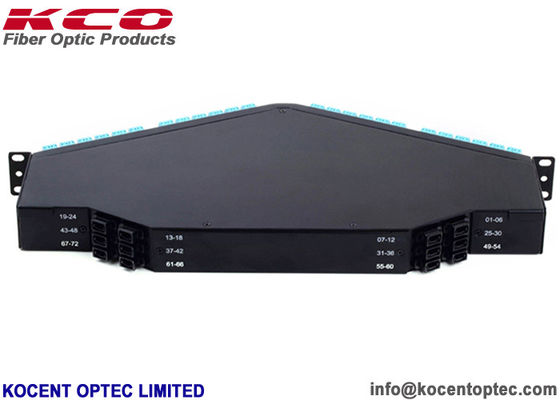

MTP rack mount angled 144 fiber patch panel product overview showing rear MPO adapter ports
Detailed view of MPO to LC fanout patch cable connection inside the 1U patch panel
MTP/MPO Connector Specifications
Parameter Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Elite Low Loss Standard Elite Low Loss Standard Elite Low Loss Standard
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Max. Insertion Loss ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.75 dB ≤0.35 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310 nm 1310 nm 1310 nm
Insert-Pull Test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-Tensile Force 15 kgf
Our Advantages
  • Kocent Optec Limited has more than 10 years of experience in the fiber optic industry, providing OEM and ODM services for all types of MPO/MTP rack mountable patch panels.
  • With a full set of production lines for steel tape production and MPO patch cord production, we supply MPO/MTP patch panels fully loaded with patch cables and adapters.
  • All installation charges are free.
OEM / ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

Custom OEM branding example on fiber optic patch panel packaging and labels
Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
