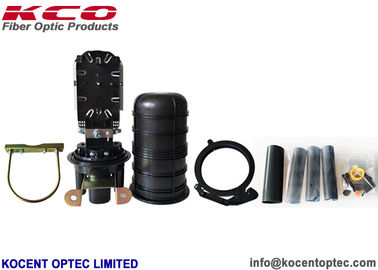

Large Image :  1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber

Product Details:

Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: iSO9001, RoHS
Model Number: KCO-H13-48ZG

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box, wooden pallet
Delivery Time: 5~14 working days
Payment Terms: T/T, L/C
Supply Ability: 5,000pcs/week
Contact Now
Detailed Product Description
Type: Dome Type, Horizontal Type Cable Ports: 1 In 3 Out
Cable Diameter: 6.0~24.0mm Min. Capacity: 6 Cores
Max Capacity: 48 Cores Material: PPR, ABS, PC, PP
P/N: KCO-H13-48ZG Color: Black



1in 3out 4port 48fiber 24fiber Vertical Fiber Optical Splice Enclosure Joint Box IP67 Mini Size


Introduction
- The strong housing provide fire resistant, anti-aging,waterproof, anti-UV and quakeproof while protecting splices during pulling, torsining and impacting.
- It ensures long term reliability and usage under ambient temperature from -40℃ to +65℃.
- Used to directly connect or splice optic cable fibers, in aerial, underground, direct buried, wall-mounting, hand hole and duct mounting application.
- Mounted on a pole, wall or a strand.

Quick detail:
- Name: Mini Size Fiber Optic Splice Closure
- Type: Dome type, or vertical type​
- Part number: KCO-H13-48ZG
- Size: 300*170mm
- Weight: 1.3kg
- Cable entry port: 1 ports
- Cable out port: 3 ports
- Capacity of fibers: 48 cores
- Splice tray number: max. 4 trays

- Tray capacity: 12 fibers
- Material: PC/ ABS / PP Plastic
- Cable Diameter: 6.0-24.0mm
- Install way: pole mount, aerial, underground, pipe line, ...
- Application: Outdoor
- Water-proof grade: IP68
- Life time: >25 years


Features
Dome, vertical fiber splice type
- Total 4 cable ports: 3 pcs round ports and 1 pc oval port
06~24 cores total capacity, max 4 trays
Elastic integrated seal ensure tightening fit
Housing provide fire resistant, waterproof, and quakeproof for splices while handling
Operating Temperature: -40~+65 ℃


Application
- FTTX (FTTP, FTTH, FTTN, FTTC)

- CATV system

- Optical fiber communication

Testing equipment

Fiber optic network convergence

Optical fiber access network

Fiber data transmission

Optical fiber video transmission

Fiber multimedia system

Fiber ethernet

Photoelectric conversion system

Main performance
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.


Product pictures:

1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber
1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber
1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber

Accessories:



1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber


Specification:

Item KCO-H13-48ZG
Size 300*170mm
Material PC
Weight 1.3kg
Cable Dia. 6-18mm
Fibers/Tray 6 Or 12
Max capacity 48 fiber
Packing 8pcs/carton/80*35*40cm/ 12.00kgs


Related products:


1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber




OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


1 In 3 Out Verticalfiber Optic Cable Junction Box Mini Size 4 Port 48 / 24 Fiber


Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
