4 Port Mini FOSC Dome Fiber Optic Splice Closure 24 Cores IP68 Waterproof

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-D13-48LX
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Dome Type, Vertical Type Cable Ports 1 In 3 Out
Cable Diameter 6.0~24.0mm Min. Capacity 12 Cores
Max Capacity 48 Cores Material PPR, ABS, PC, PP
P/N KCO-D13-48LX Color Black
High Light

fiber optic splice enclosure

,

fiber optic joint closure

Leave a Message
Product Description



4 Port Mini FOSC Dome Fiber Optic Splice Closure 24core / Vertical Pipeline Buried Fiber Joint Box



Introduction

- Fiber opitc closure is applied in the junction and protecting of the fiber.

- The outer part and the fusing part of the clousure are made by the strengthen Polymer plastic.

- So it havethe features as below:
   Great mechnical performance
   Great resisting aging performance
   High airproof, dampproof and resisting, lightning strike performance
   Can be place with the aerial cabal or buried in carth put in the pipeline


Quick detail:
- Name: Mini Size Fiber Optic Splice Closure
- Type: Dome type, or vertical type​
- Part number: KCO-D13-48LX
- Size: 340*180mm
- Weight: 1.0kg
- Cable entry port: 1 ports
- Cable out port: 3 ports
- Capacity of fibers: 48 cores
- Splice tray number: max. 2 trays

- Tray capacity: 24 fibers
- Material: PC/ ABS / PP Plastic
- Cable Diameter: 6.0-24.0mm
- Install way: pole mount, aerial, underground, pipe line, ...
- Application: Outdoor
- Water-proof grade: IP68
- Life time: >25 years


Features
Dome, vertical fiber splice type
- Total 4 cable ports: 3 pcs round ports and 1 pc oval port
06~24 cores total capacity, max 4 trays
Elastic integrated seal ensure tightening fit
Housing provide fire resistant, waterproof, and quakeproof for splices while handling
Operating Temperature: -40~+65 ℃


Application
- FTTX (FTTP, FTTH, FTTN, FTTC)

- CATV system

- Optical fiber communication

Testing equipment

Fiber optic network convergence

Optical fiber access network

Fiber data transmission

Optical fiber video transmission

Fiber multimedia system

Fiber ethernet

Photoelectric conversion system

Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.

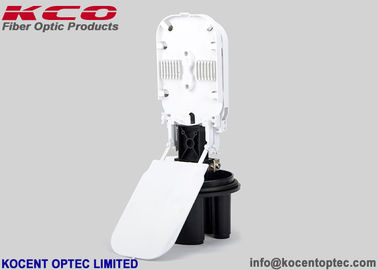

Product pictures:

4 Port Mini FOSC Dome Fiber Optic Splice Closure 24 Cores IP68 Waterproof 0
4 Port Mini FOSC Dome Fiber Optic Splice Closure 24 Cores IP68 Waterproof 1
4 Port Mini FOSC Dome Fiber Optic Splice Closure 24 Cores IP68 Waterproof 2




Specification:

Item KCO-D12-48SZ
Size 340*180mm
Material PP+fiber / PC / ABS
Weight 1.00kg
Cable Dia. 6-18mm
Fibers/Tray 12 Or 24
Max capacity 48 fiber
Packing 20pcs/carton/83*35*40cm/ 22.00kgs


Related products:


4 Port Mini FOSC Dome Fiber Optic Splice Closure 24 Cores IP68 Waterproof 3




OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


4 Port Mini FOSC Dome Fiber Optic Splice Closure 24 Cores IP68 Waterproof 4


Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
