Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized

  • Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized
  • Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC/UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plastic module, PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 350,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type FC, LC, SC Packing 10pcs/pack
Cable Available Drop Cable, Indoor Cable (include 0.9mm, 2.0mm, 3.0mm) Fiber G652D, G657A
Insertion Loss 0.2dB Return Loss 50dB
High Light

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description

Drop Cable Fiber Optic Quick Connector Fast Connect FC LC SC Customized





We can provide SC FTTH fiber optic fast connectors that use for FTTH cable and common indoor fiber optic cable. Also OEM Service is available, such as package, label, etc all can be customized. We can supply all type of fiber optic fast connectors such as SC, FC, ST, LC, etc. All our Fiber Optic Fast Connectors meet RoHS Compliant, and 100% test Insert loss before shipment.



Fast connectors descriptions:



Quick assembly connector is used for field-installable optical fiber connector, screw design widely used in FTTH access optical network, include Single mode and Multimode and suitable for 2*3.0mm drop cable and also can be suitable with 0.9mm, 2.0mm, 3.0mm indoor fiber optic cable.



Fast connectors quick detail:

- Name: SC Fast Connector

- Ferrule end-face: UPC, APC

- Ferrule size: 2.5mm

- Structure: Pre-polished, Un-polished

- Connector: FC, LC, SC

- Fiber: G652D G657A



Fast connectors features:

- No special assembling tool

- Quick and easy for assembling

- Reusable and repeat operation times are up to 300

- Integrated protection of the casing to prevent the connector form impact

- Can be installed in two minutes

- Power-save, as it does not need hot melting

- Without any gluing and polishing process

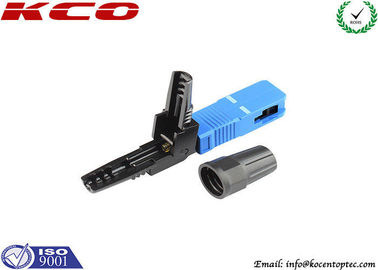

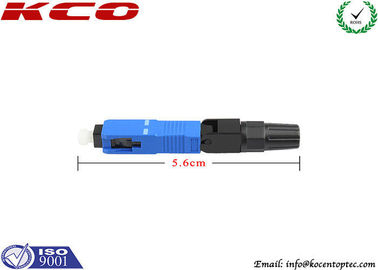

Fast Connectors products picture:



Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized 0



Drop Cable Fiber Optic Connector Assembly SC / UPC Indoor FC LC SC Customized 1

Fast connectors applications:

- FTTH/FTTX/FTTD

- Distribution frames

- Maintenance or emergency restoration of fiber networks

- Connection at the desk for LAN environments

- Terminal box



Fast connectors Specifications:

Applicable for Drop cable. Indoor cable(0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Using temperature -40°C~+75°C
