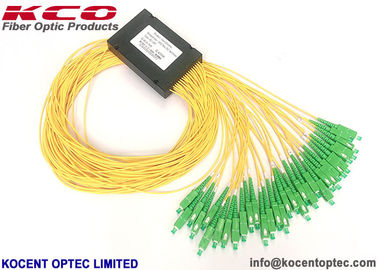

2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter

  • 2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter
  • 2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter
  • 2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x32-3.0-1.0M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*16 1x16 Connector SC/APC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x32-3.0-1.0M-SCA
High Light

LSZH SM Optical Fiber Splitter

,

1x32 Fiber Optic Cable Splitter
Leave a Message
Product Description



FTTH 1x32 SC/APC Fiber Optic Splitter Black ABS Module 2.0mm 3.0mm LSZH SM G567A2



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1

Descriptions:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

- The PLC splitters are used to separate or combine optical signals. A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
- PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber.
- Once everything is aligned and bonded, it is then packaged inside a miniature housing.
- PLC splitters have high quality performance, such as low insertion loss, low PDL, high return loss, etc

- Generally, there are two types of fiber optic splitters, which are FBT splitters and PLC splitters.

- PLC (Planar Lightwave Circuit) Splitter are available for Single-mode fiber in ratio 1:2 to 1:64. They provide a low failure rate and a evenly spread splitting profile over the whole wavelength range from 1260nm to 1650nm.

- With these splitters you can split one fiber core on different fibers, also the reverse patch is feasible, different incoming signals are grouped together on one fiber.

- The splitter have no electronic parts or power supply inside and are therefore fail-safe and usable without configuration settings.

Because of the passive construction these splitter are fully transparent with regard to data rates and protocols.



Features:

- Compact size

- High reliability

- High channel number

- Low insertion loss and PDL
- Excellent channel uniformity
- Wide operating wavelength and temperature range



Applications:
- Fiber optic splitters play an increasingly significant role in many of today’s optical network topologies.
- They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor).



Product photos:

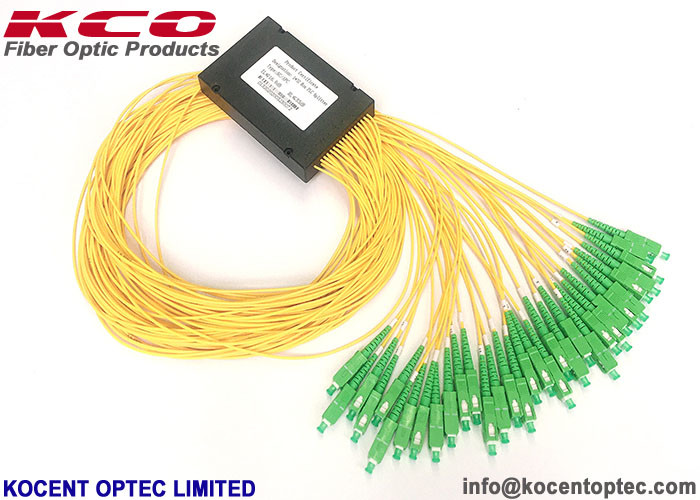

2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 0

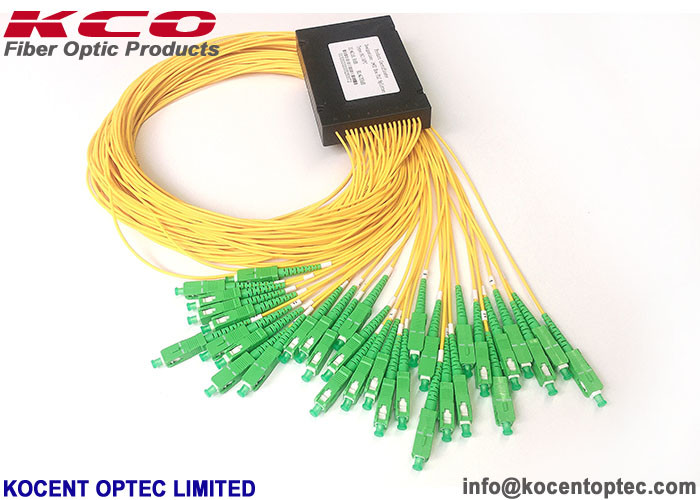

2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 1

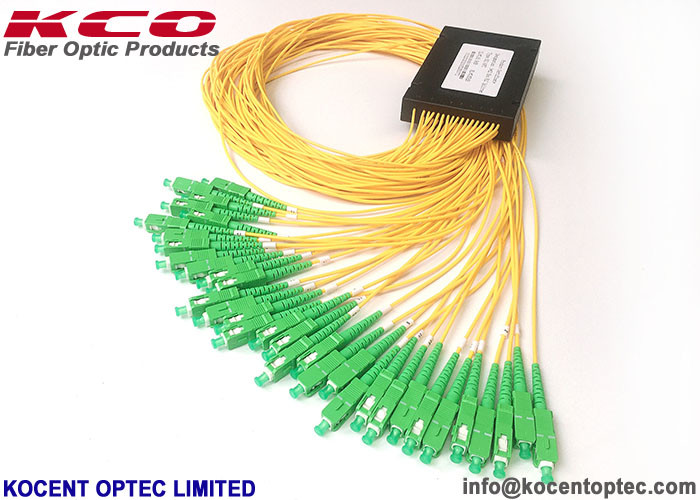

2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 2

2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 3








Packing way:

2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 4



Our other relation products:



2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



2.0mm 3.0mm FTTH 1x32 SC APC G567A2 Fiber Optic Splitter 6



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
