LC 0.9 2.0 3.0 SM MM OM2 OM3 OM4 Fiber Optic Connector Housing With Ferrule

  • LC 0.9 2.0 3.0 SM MM OM2 OM3 OM4 Fiber Optic Connector Housing With Ferrule
  • LC 0.9 2.0 3.0 SM MM OM2 OM3 OM4 Fiber Optic Connector Housing With Ferrule
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type LC Polishing Type UPC APC
Insertion Loss 0.2dB Fiber Type SM, OM1, OM2, OM3, OM4, OM5
Return Loss 55dB Cable 0.9mm, 2.0mm, 3.0mm
Application Patch Cord / Pigtail Assembly Ferrule Ceramic
Packing 5000 Set / Box
High Light

OM2 Fiber Optic Connector

,

Fiber Optic Connector With Ferrule

,

OM4 Fiber Optic Connector
Leave a Message
Product Description

LC 0.9 2.0 3.0 SM MM OM2 OM3 OM4 Fiber Optic Connector Housing With Ferrule



Descriptions:

- LC connector is one of common type of fiber optic connector.

- The Single mode LC connector is available in SC/PC and SC/APC.

- The multimode LC connector is available in OM2 (beige), OM3 (aqua), OM4 (violet) and OM5 (lime).

- The LC connector is use for 0.9mm pigtail and fanout pigtaill, 2.0mm 3.0mm patch cord and aremored patch cord.



Features:

- Simplex, duplex and higher core densities.
- 900 micron (0.9mm), 2mm, 3mm cable applications.

- High quality ceramic components and Material.
- 100% tested on optical performance (Insertion Loss & Return Loss).



Applications:

- Fiber optic patch cord and pigtail assembly.

- Telecommunication Network.

- Local Area Network(LAN).

- CATV.

- FTTH.

- Testing Equipment.



Product Pictures:

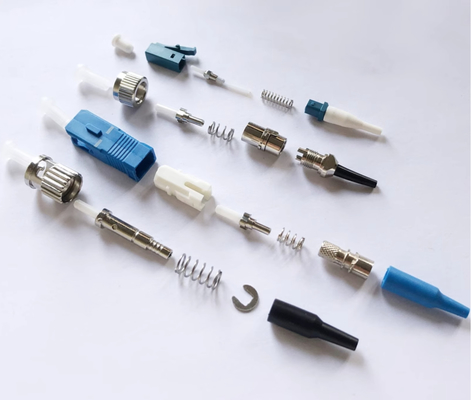

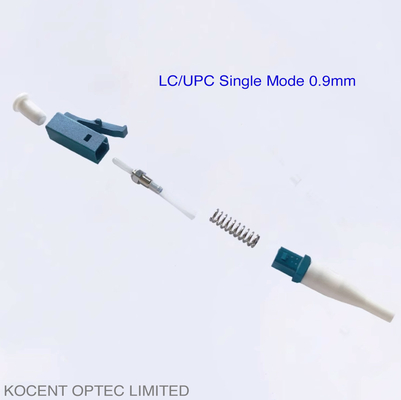

LC 0.9 2.0 3.0 SM MM OM2 OM3 OM4 Fiber Optic Connector Housing With Ferrule 0



Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc



Specifications:


Item		 Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)		 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N



Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, DIN, D4 and so on
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
