Single Mode ST Fiber Optic Connector For ST Pigtail ST Patch Cord

  • Single Mode ST Fiber Optic Connector For ST Pigtail ST Patch Cord
  • Single Mode ST Fiber Optic Connector For ST Pigtail ST Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number ST
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type ST Polishing Type UPC
Insertion Loss 0.2dB Fiber Type SM, OM1, OM2, OM3, OM4, OM5
Return Loss 55dB Cable 0.9mm, 2.0mm, 3.0mm
Application Patch Cord / Pigtail Assembly Ferrule Ceramic
Packing 5000 Set / Box
High Light

ST Fiber Optic Connector

,

ST Pigtail Fiber Optic Connector

,

ST Patch Cord Fiber Optic Connector
Leave a Message
Product Description

Single Mode ST Fiber Optic Connector For ST Pigtail ST Patch Cord



Descriptions:

- Fiber optic connectors are used to connect two runs of fiber optic cable and consist of an adapter assembly and two plugs.

- ST Connector. Straight tip (ST) connectors are a quick-release bayonet style connector; used most commonly in Fiber optic networking applications.

- ST connectors are designed to work with both single-mode and multi-mode fiber optic cables, making them versatile and suitable for a wide range of network configurations.

- ST connectors can be compatibility with various fiber optic cables and applications.



Features:

- Use 250um ceramic ferrule.

- Simplex, duplex and higher core densities.
- 900 micron (0.9mm), 2mm, 3mm cable applications.
- Low IL and High RL.



Applications:

- Fiber optic patch cord and pigtail assembly.

- Telecommunication Network.

- CATV.

- FTTH.

- Testing Equipment.

- Local Area Network(LAN).



Product Pictures:

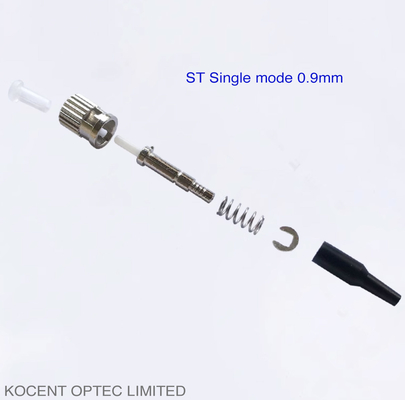

Single Mode ST Fiber Optic Connector For ST Pigtail ST Patch Cord 0

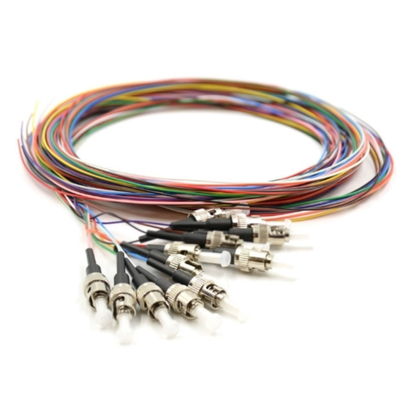

Single Mode ST Fiber Optic Connector For ST Pigtail ST Patch Cord 1





Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc



Specifications:


Item		 Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)		 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N



Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, DIN, D4 and so on
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
