SC UPC APC 0.9mm 2.0mm 3.0mm Connector For Fiber Optical Patch Cord Pigtail

  • SC UPC APC 0.9mm 2.0mm 3.0mm Connector For Fiber Optical Patch Cord Pigtail
  • SC UPC APC 0.9mm 2.0mm 3.0mm Connector For Fiber Optical Patch Cord Pigtail
  • SC UPC APC 0.9mm 2.0mm 3.0mm Connector For Fiber Optical Patch Cord Pigtail
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type SC Polishing Type UPC APC
Insertion Loss 0.2dB Fiber Type SM, OM1, OM2, OM3, OM4, OM5
Return Loss 55dB Cable 0.9mm, 2.0mm, 3.0mm
Application Patch Cord / Pigtail Assembly Ferrule Ceramic
Packing 5000 Set / Box
High Light

Connector For Fiber Optical Patch Cord

,

UPC APC SC Connector
Leave a Message
Product Description

FC Fiber Optical Connector Housing Set For Optical Fiber Patch Cord Pigtail Production



Descriptions:

- The SC connector features a snap-in design with a push-pull latching mechanism that is easy to connect and disconnect.

- The SC connector features a 2.5mm Zirconia Ceramic ferrule and a push/pull coupling mechanism for a fast and reliable connection.

- A range of pigtail, simplex and duplex SC connectors are manufactured including Standard and Premium Low Loss Grades which are suitable for various applications. Low Loss grade (less than 0.2dB), Standard Grade (Less than 0.3dB)



Features:

- Use 250um ceramic ferrule (CCTC brand or other brand)
- For 0.9mm, 2mm, 3mm cable applications.

- Low insertion loss and back reflection capability.

- Precision anti rotation key for mechanical stability.
- Nickel plated metal body corrosion resistant.



Applications:

- Fiber optic patch cord and pigtail assembly.

- Telecommunication Network.

- CATV.

- FTTH.

- Testing Equipment.

- Local Area Network(LAN).



Product Pictures:

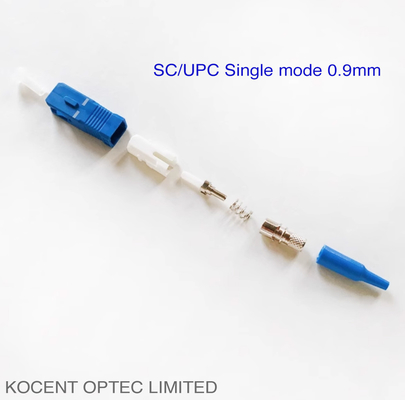

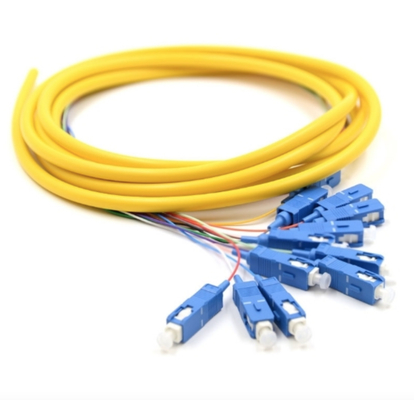

SC UPC APC 0.9mm 2.0mm 3.0mm Connector For Fiber Optical Patch Cord Pigtail 0

Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc



Specifications:


Item		 Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)		 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N



Ordering Information:
1, Connector type : SC, LC, FC, ST, MTRJ, DIN, D4 and so on
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
