Plastic MPO Adapter and MPO Coupler with Up to Down Keyway and 0.3dB Low Insertion Loss

  • Plastic MPO Adapter and MPO Coupler with Up to Down Keyway and 0.3dB Low Insertion Loss
  • Plastic MPO Adapter and MPO Coupler with Up to Down Keyway and 0.3dB Low Insertion Loss
  • Plastic MPO Adapter and MPO Coupler with Up to Down Keyway and 0.3dB Low Insertion Loss
  • Plastic MPO Adapter and MPO Coupler with Up to Down Keyway and 0.3dB Low Insertion Loss
Place of Origin Guangdong, China
Brand Name kCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number MPO-adt
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 3~5 working days
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month
Product Details
Material Plastic Durability 0.3dB
IL 0.3dB Wave Length 1260~1650nm
Type MPO-MPO Operating Temperature -40~+70 Degree
Highlight

qsfp breakout cable

,

breakout fiber optic cable
Leave a Message
Product Description
Product Overview

The Plastic Fibre MPO Adaptor / MPO Ferrule MPO Adapter is a high-performance optical coupler engineered for 40G network upgrades. Also known as an MPO fiber optic adapter, optic fiber adapter, or optical fiber adapter, this mechanical device precisely aligns fiber-optic connectors using an internal interconnect sleeve that holds two ferrules together. It is available for Single mode UPC and APC, as well as Multimode PC configurations.

The MPO adapter comes standard in black, with a choice of UL-rated plastic or die-cast metal housing for durability and long-term reliability.

Key Features
  • Meets IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces
  • Internal shutter available
  • Keyway available for key-up to key-up or key-up to key-down configurations
  • Low insertion loss and high return loss
  • High precision of mechanical dimensions
  • High reliability and stability
  • Ceramic or Bronze sleeve options
  • PC, APC, and UPC polish options
  • Simplex / Duplex configurations
  • Hybrid adapter optional
Applications
  • Widely used in ODF and telecommunication networks
  • Optical communication systems
  • Optical instruments and measuring appliances
  • Optical fiber sensors
  • CATV
  • Active device termination
  • Metro networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Premise installations
  • Gigabit Ethernet
  • Video transmission
Product Image

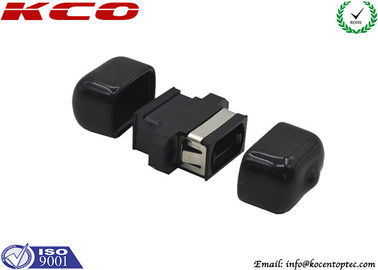

Plastic Fibre MPO Adaptor with black housing and keyway alignment feature

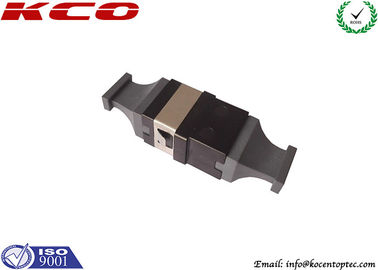

MPO fiber optic adapter — plastic housing, key-up to key-down configuration

Specifications
Housing UL-Rated Plastic or Die Cast
Clip & Shutter Stainless Steel
Durability < 0.3dB change, 500 mating cycles
Operating Temperature -40℃ ~ +70℃
Storage Temperature -40℃ ~ +85℃
Environment and Mechanical Properties
Properties Test Condition Conformance Test Result
Vibration 10–55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22–28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature Humidity Cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC — ≤0.2dB
Storage Temperature -40ºC to +85ºC — ≤0.2dB
Packing Reference
Fiber optic adapter packing method showing carton box arrangement

Standard packing method for fiber optic adapters

OEM / ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
