Polished DIN Fiber Optic Connectors High Return Loss For Testing Equipment

  • Polished DIN Fiber Optic Connectors High Return Loss For Testing Equipment
  • Polished DIN Fiber Optic Connectors High Return Loss For Testing Equipment
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number DIN
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type DIN Insertion Loss 0.2dB
Mode Multimode, MM, Single Mode, SM, Mono Mode Return Loss 55dB
Cores 2 Cores, Duplex, 1 Cores, Simplex, Multi Fibers Length 1m, 3m, 5m, Customized
High Light

fibre optics connectors

,

plastic optical fiber connectors
Leave a Message
Product Description

Polished DIN Fiber Optic Connectors High Return Loss For Testing Equipment





Fiber Optic Connectors Descriptions:

- DIN fiber optic connector is available with a variety of boots.

- DIN Fiber Optic Connector includes single mode UPC, single mode APC and multimode UPC types.

- DIN fiber connectors feature a single unit body with spring-loaded free floating zirconia ferrule.

- This unique connector offers superior performance in a compact, compatible design suitable for a variety of applications.

- Comply to CECC 86 135-801 (PC version) & CECC 86 135-802 (APC version) standards.

- Fiber Optic Connectors is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.



Fiber Optic Connectors Applications:

- Telecommunication Network, wide area networks.

- Local Area Network(LAN).

- Testing Equipment.

- Optical Switch interface connections
- Gigabit Ethernet
- CATV and WAN
- Testing Instrument, active device connection

- Premise Installations
- Telecommunication Networks

- Fiber to the home (FTTH)



Fiber Optic Connectors Features:

- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.

- Low insertion loss

- High return loss

- Excellent repeatability

- Compact and anti-pull design
- High precision exact alignment
- UPC, PC or APC polished connectors

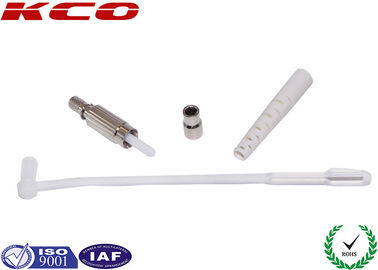

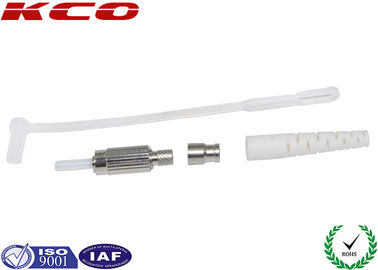

Fiber Optic Connectors Product Pictures:

Polished DIN Fiber Optic Connectors High Return Loss For Testing Equipment 0



Details about Fiber Optic Connectors:

Connector Ferrule Ceramic
Alignment Sleeve Ceramic
Connector Body UL 94V-0 rated Thermoplastic to meet standard; amiability ratings
Crimp Insert/Crimp Tube Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap Nylon or PVC
Strain Relief Boot Flame retardant (UL-Rated 94-V0) polymer
Connector Style SC, FC, ST, LC, MTRJ, etc



Fiber Optic Connectors Specifications:


Item		 Single mode Multimode
PC UPC APC 62.5/125 50/125 50/125 10G
Insert Loss/connector
(single Fiber)		 0.3dB Max. (0.2dB typ.) 0.3dB Max. (0.2dB typ.)
Return Loss ≥45 dB ≥50 dB ≥60 dB N.A
Insert Loss/MTRJ Connector 0.5dB Max. (0.45dB typ.) 0.5dB Max. (0.45dB typ.)
Pull Strength ≥98N ≥98N



Ordering Information:
1, Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
