|P/N:||KCO-launch Box||Application:||OTDR Launch|
|Core Number:||Simplex||Connector:||SC, FC, Etc|
|Length:||0.5km, 1km, 2km||Fiber:||Single Mode|
fiber optic accessories,
fiber optic fittings

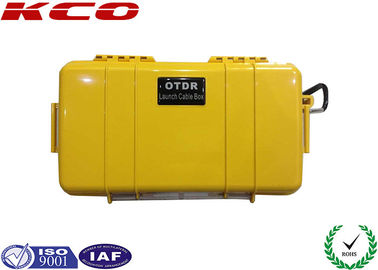

Fiber Optical OTDR Launch Cable Box Distance 2km With SC Connector
- Designed to aid in the testing of fiber optic cable when using an OTDR.
- The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.
- Available in many different configurations and fiber lengths
• The OTDR test extension line, OTDR, OTDR products
• Mainly used to compensate for the OTDR test blind area, central fiber
• Without any fusion joint, small volume, light weight Easy to carry.
• Single-mode, multimode ( 62.5125 )
• Length 500M, 1KM, 2KM... 5KM ( custom )
• Loss less than or equal to 0.5dBmkm
• With excellent sealing performance, waterproof and dustproof explosion-proof
• Imported yellow shell
• Single-mode or multimode optical fiber
• Length 1-3 km selected at random
• Fiber optic connectors available: FC, LC, SC, ST/PC or APC
- Pulse Suppressor,Launch Box,Delay Line,Installation/Testing,Training,Calibration.
- Compound Latch for positive seal and easy opening with locking feature.
- Nonmetal construction will not dent, corrode, or conduce electricity.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature .
- Connector type: SC, LC, ST, FC, E2000. MPO etc
- Length: from 100m to 4KM
- Water resistant, crushproof and dust proof
- Material: SR Polypropylene
- Color: Black/Yellow
- Operating temperature -40°C to +80°C
- Type of fiber: corning SMF-28
- Lead length: 1m-5m, outside diameter 2.0mm or 3.0mm
- G652 type fiber.
- Back Reflection(RL) < -55 DB
- GR-326 Standard
(1) Apex offset: 0 - 50 um
(2) Radius of curvature 7 – 25 nm
(3) Fiber roughness: 0 – 25 nm
(4) Ferrule roughness: 0-50 nm
|Length*Width*Height||23.8x14.1x6.7cm / 13.5x9 x4.3 cm|
|Net Weight||0.75 kg (without fiber)|
|Operating temperature||Operating temperature|
|Typical Loss||<1dB @ 1310nm for 1000 meters|
|A = Input
|B = Output
|C = Fiber||D = Length(km)|
|FC-FC/UPC||FC-FC/UPC||S–Single mode fiber||0.5=0.5km|
|ST-ST/UPC||ST-ST/UPC||M6–Multi mode fiber (62.5/125)||1.0=1km|
|SC-SC/UPC||SC-SC/UPC||M5–Multi mode fiber (50/125)||2.0=2km|
|FCA – FC/APC||FCA – FC/APC||OM3 – Corning 50/125 (350)|
|SCA – SC/APC||SCA – SC/APC||G657A – TKH G.657A 9/125|
Single mode fiber, input FC/UPC; output LC/APC, 1000 meters long LB – FC – LCA – S – 1.0
Note: Other special adaptors or connectors are available upon request.
