FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

China FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B supplier
FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B supplier FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B supplier

Large Image :  FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

Product Details:

Place of Origin: Canada
Brand Name: EXFO
Certification: ISO9001, RoHS, UL
Model Number: Max-710B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box, wooden pallet
Delivery Time: 2~5 working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Model: Max-710B Dynamic Range: Up To 37 DB
Short Distance Resolution: 5cm Life Duration: 12 Hours
Testing Length: Max 80km Power: 12V

OTDR Max-710B tester OTDR FTTx/MDU Optical Time Domain Reflectometry



COST-OPTIMIZED AND COMPREHENSIVE OTDR:

- The MAX-710B is the first tablet-inspired OTDR that is handy, lightweight and rugged enough for any outside plant environment.

- With a 7-inch, outdoor-enhanced touchscreen, the most efficient handheld display in the industry, it delivers an unprecedented userexperience.

- Its intuitive and Windows-like GUI ensures a fast learning curve.

- Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.

- The Max-710B is a genuine last-mile OTDR from the world’s leading manufacturer.

- It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for first-time-right results, every time.

- It is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).

- In addition to its amazing 12-hour battery life that will never let you down, it offers plug-and-play hardware options, like the VFL, power meter and USB tools.

- Ultimately, the Max-710B is small enough to fit in your hand and big enough to fit all your needs!



Key Features:
- Handy, lightweight, powerful, tablet-inspired design
- 7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
- 12-hour autonomy
- Dead zones: EDZ 1m, ADZ 4m
- Dynamic range of 30/28 dB
- Rugged design built for outside plant



Applications:
- FTTx last-mile installation and troubleshooting
- Short access network testing
- FTTA-fi ber DAS installations
- CATV/HFC network testing


Specifications:
Display Two USB 2.0 ports
RJ-45 LAN 10/100 Mbit/s
Storage 2 GB internal memory (20 000 OTDR traces, typical)
Batteries Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
Power supply Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Wavelength 1310/1550nm
Dynamic range 30/28dB
Event dead zone 1m
Attenuation dead zone 4m
Distance range 0.1 to 160 km
Pulse width 5 ns to 20 us
Linearity ±0.05dB
Loss threshold 0.01dB
Loss resolution 0.001dB
Sampling resolution 0.04 to 5m
Sampling points Up to 256 000

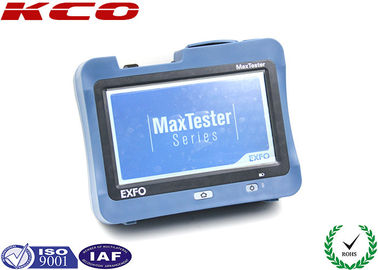

Product pictures:

FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710BFTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710BFTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

FTTx/MDU Optical Fiber OTDR Tester Fiber Optic Tools Max-710B

Packing ways:
According to export standard packing.

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
