Payment & Shipping Terms:
|Enterface:||FC/PC (Optional SC / ST)||Light:||LD|
|Working Time:||24 Hours||Wavelength 1:||850/1310nm|
|Wavelength 2:||1310/1550nm||Name:||Optical Laser Source|

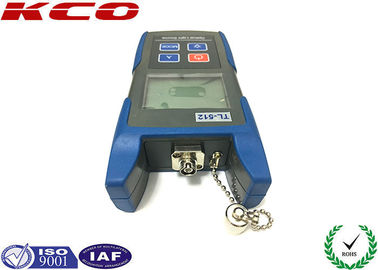

Mini Dual Length Wave TL-512 Fiber Optic Laser Stability Light Source
- A variety of different wavelength options to meet the different needs of customers.
- large LCD display, friendly and intuitive operation, small size, easy to use.
- Provides calibration for optical power meters and optical attenuators.
- Highly stable lasers provide high stability output power.
- not only continuous wave output and with three modulation frequencies: 270Hz, 1KHz, 2KHz.
- Portable design, the fuselage with a shock set, to improve the instrument field adaptability, and a dust cover to protect the optical interface.
- Low battery indication function, automatic shutdown function optional.
- Simple to use, single interface to achieve dual-wavelength output.
- Power saving mode, power is turned off automatically after 10 minutes of instrument idle.
- standard configuration also take the outside, portable soft bag, both good to protect the instrument is also easy to carry.
|1||TL-510||Fiber optic power meter||A||-70~+10dBm|
|2||TL-512||Fiber optic stable light source||Length wave||850/1310nm|
Output wavelength: 850nm / 1300nm, 1310nm / 1550nm available for users to choose
Output power:> -7dBm
Laser Type: LD
Spectral width: 5 nm
Short-term stability: 0. 01dB @ 5 minutes
Long time stability: 0. 1dB @ 24 hours
Connector Type: FC / PC
Fiber type: SM MM
Audio carrier: 0Hz, 270Hz, 1KHz, 2KHz
Display information: Select the wavelength, battery power, carrier status, output power, power status
Power off automatically: 10 minutes automatic shutdown
Battery type: alkaline batteries or rechargeable NiMH batteries AAA type
Continuous working hours:> 30 hours
Servo stabilization circuit: Yes
Operation sound Tip: Yes
Storage temperature: -20°C~ +70°C
Operating temperature: -10°C --- +60°C
Relative Humidity: <95%
Working altitude: 2500m
Weight (g): 160
Dimensions (mm): 130mm * 63mm * 29mm
