LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler

China LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler supplier
LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler supplier LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler supplier LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler supplier

Large Image :  LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler

Product Details:

Place of Origin: China
Brand Name: KCO, Kocent Optec Limited
Certification: iSO9001, RoHS
Model Number: FBT-MM-3.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: plastic box
Delivery Time: 3-5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50000pcs/ week
Contact Now
Detailed Product Description
Cable Material: PVC, LSZH Cable Length: <1.0m
Cable Diameter: 2.0mm, 3.0mm Terminal Connector: FC, SC, LC
Length Wave: 1310/1550nm Type: FBT, Fused Fiber Splitter

LC SC FC Multimode 1x2 Fiber Optic Fused Splitter MM FBT Coupler​



Quick informations:

Name:  FBT coupler

Cable diameter: 2.0mm, 3.0mm

Cable length: 1.0m

Terminal connecter: FC, SC, LC or optional

Rate: 10/90 or customer request

Pack: ABS box


Description:

Dual Window Wideband Couplers are high quality components designed to divide or combine optical signal in optical fiber system.

These devices are fabricated by using the fused bi-conical taper (FBT) process are reliable over wide range of temperature.

The operating wavelength is 1310nm and 1550nm and the passband is 80nm.

The coupling ratio can range from 1:99 to 50:50.

Various packaging and pigtailing configurations can satisfy our customer's requirements.

Multimode couplers precisely divide light signals between two multimode fibers. The couplers are bi-d
-irectional in performance for either power splitting or Combining and operate 800nm to 1300nm.
Multimode couplers are offered with standard 50/125μm or 62.5/125μm fiber. The devices can be
assembled into miniature or ruggedized packages and can be terminated with industry standard multimode connectors.



Features:

- Low insertion loss

- Low PDL

- High directivity

- Long haul reliability

- Customer defined specifications



Applications:

- Telecommucations

- Fiber in the loop

Local area network

CATV

Fiber optic sensing

Test instruments

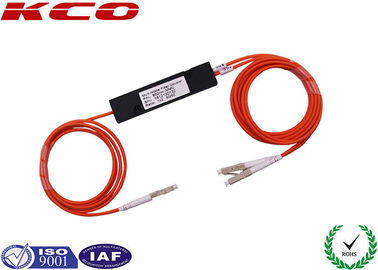

Product Photo:

LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler

LC SC FC Multimode Fused 1x2 Fiber Optic Splitter MM FBT Coupler



Parameter:

Parameter   Unit Premium A B
Operating   nm 1310±40 and 1550±40
Excess loss Typ. dB 0.15
Polarization Stability Max dB 0.15 0.15 0.2
Uniformity(50:50) Max dB 0.4 0.5 0.6
Thermal Stability Max dB 0.2 0.3 0.4
Directivity Min dB 50(1x2),60(2x2)
Reflectance Min dB 50(1x2),60(2x2)
Operating Temperature   °C -30~85
Operating Temperature   °C -40~85
  50/50 Max dB 3.4/3.4 3.6/3.6 3.7/3.7
40/60 4.5/2.6 4.6/2.7 4.7/2.8
30/70 5.8/1.85 5.9/1.9 6.0/2.0
20/80 7.6/1.2 7.7/1.3 7.9/1.4
10/90 10.8/0.65 11.0/0.7 11.1/0.8
1/99 21.8/0.2 22.1/0.25 22.5/0.3



Other type parameter:

Parameter   Specification
Operating Wavelength nm Single Window1 Dual,Three Window2
(1×N)   N=3 N=4 N=5 N=8 N=16 N=24 N=32 N=64
Fiber Type   Corning SMF-28e
IL(MAX) dB 5.41/5.62 7.01/7.22 7.81/8.02 10.01/10.42 13.51/13.92 15.01/15.42 17.31/17.52 21.01/21.52
Uniformity dB 0.51/0.62 0.51/0.62 0.61/0.82 0.81/1.02 1.11/1.32 1.21/1.52 1.31/1.52 2.11/2.52
Return Loss dB ≥55
Directivity dB ≥55
PDL dB <0.20 <0.20 <0.30 <0.30 <0.40 <0.50 <0.50 <0.50



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
