PLC Optical Splitter 1x8 Fanout

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number PLC-mini-1x8
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 3~7 days after payment
Payment Terms L/C, T/T, Western Union
Supply Ability 50,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type 1x8 Fiber Length 1.0m~2.0m
Cable Diameter 0.9mm IL < 10.8dB
PDL < 0.2dB Cover Material LSZH, PVC
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter

Leave a Message
Product Description

PLC fiber optic Splitter 1x8 blockless mini module with fan-out kits LC/APC, SC/APC



1x8 Fiber optic PLC Splitter is also called 1*8 fiber optical plc splitter, optic fiber plc splitter, optical fiber plc splitter, plc fiber optic splitter or plc optical fiber splitter. We can produce the fiber optical splitter with connector or without connector!



Fiber optic PLC Splitter Description:

PLC splitter are based on Planar Waveguide Technology. They provide a cost effentive and space saving networking solution. They are key components in FTTx networks and are responsible to distribute the signal from central office to numbers of promises. They have very wide range of operatng wavelength from 1260nm to 1620nm. With it’s compact size, these splitters can be utilized in in-gruond and earial pedestals as well as rack mount system. It is used for small spaces can be easily placed in a formal joint boxes and splice closure, in order to facilitate welding, does not need specially designed for spave reserved. Our PLC splitter family features either ribbon or individual fiber output, We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All splitters provide guaranteed optical performanve and high reliability that meet GR-1209-CORE and GR-1221-CORE requirement.



Fiber optic PLC Splitter Options:

- 1xN: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.

- 2xN: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.

- Un-connectorized.

- Fiber jacketing outside boxes 2mm and up to 3mm.

- ABS box type or inside metal box/module cassette type.

- SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ect connector options.

- Custom connector configurations and combinations.



Fiber optic PLC Splitter Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Fiber optic PLC Splitter Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Telcordia GR-1221 and GR-1209.



1x8 blockless with fan-out kits design:

PLC Optical Splitter 1x8 Fanout 0

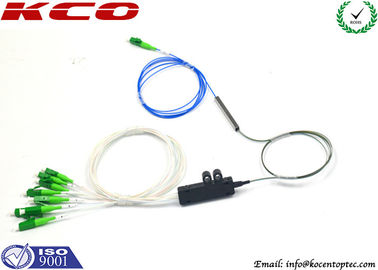

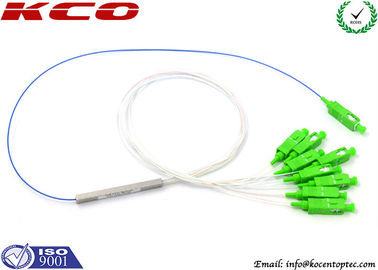

Product picture:

PLC Optical Splitter 1x8 Fanout 1

PLC Optical Splitter 1x8 Fanout 2



Fiber optic PLC Splitter Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Packing ways:
According to export standard packing.

OEM/ODM service: Our Rack Mount PLC Splitter OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.

Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
