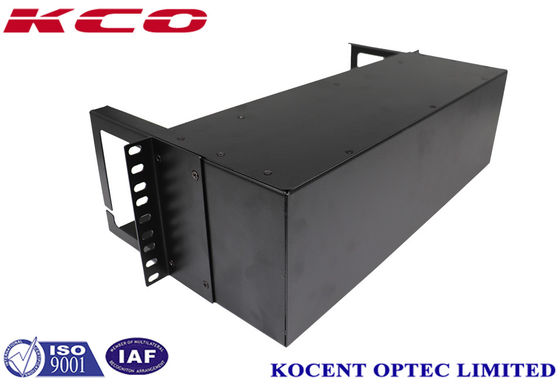

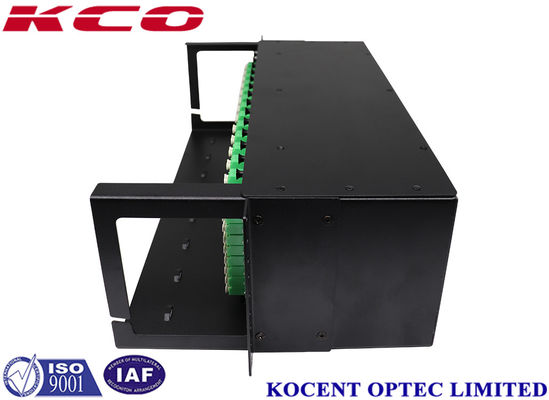

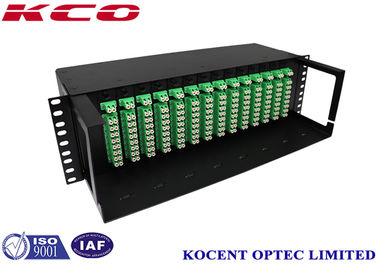

2x16 Fiber Optic Splitter PLC Splitter with 19'' Standard Rack Mountable Steel Tape/Aluminum Alloy Chassis
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-PLC-Chassic-3U |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 5~8 days |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Tape/ Aluminum Alloy | High | 3U |
|---|---|---|---|
| Splitter Type | Mini Tube Type | Split Way | 2 Way Input & 16 Way Output |
| Connector | LC/APC. SC/APC | Cable | 0.9mm |
| Highlight | PLC Optical Splitter,ABS Box PLC Splitter |
||
Product Description
2×16 PLC Splitter LC/APC 3U Fiber Optic Splitter Patch Panel Rack Mountable Chassis ODF
Kocent Optec Limited brings over 10 years of OEM/ODM experience in fiber optic patch panels. We welcome custom design requests for fiber optic patch panels, wall mount terminal boxes, and cabinets. Contact our sales team for personalized solutions.
Product Highlights
- 3U rack-mountable chassis with standard 19" design
- Compact LGX box design saves cabinet space
- Supports 1×8 SC or 2×16 LC splitter configurations
- Chassis accommodates 8-16 LGX boxes (customizable)
- Material options: 0.8-1.2mm steel or aluminum alloy
- Color options: grey, white, black or custom
- Free splitter/adapter installation with complete purchase
- Free logo printing for orders over 100 units
PLC Splitter Features
- Low insertion loss and polarization dependent loss
- Excellent environmental and mechanical stability
- Compliant with Telcordia GR-1221 and GR-1209 standards
Applications
- FTTX/FTTH networks
- PON/GPON systems
- LAN infrastructure
- CATV distribution
- Test equipment integration
The PLC splitter utilizes planar lightwave circuit technology to efficiently distribute optical signals from central offices to multiple locations. The LGX metal housing enables plug-and-play integration, eliminating field splicing requirements and reducing deployment complexity.
Technical Specifications
| Parameter | Value |
|---|---|
| Fiber length | 1m or custom |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e, G657A1 or custom |
| Directivity (dB) Min | 55 |
| Return Loss (dB) Min | 55 (50) |
| Power Handling | 300 mW |
| Operating Wavelength | 1260-1650 nm |
| Temperature Range | -40°C to +85°C |
Performance Specifications
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Insertion Loss (dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
OEM/ODM Services
We offer complete branding solutions including custom logos on products, packaging, and labels. Our OEM/ODM services are available for all order quantities.
Packaging & Shipping
- Standard export packaging: carton boxes, wooden cases, or pallets
- Shipping options: international express (DHL, UPS, TNT), air freight, or sea transport
