3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material

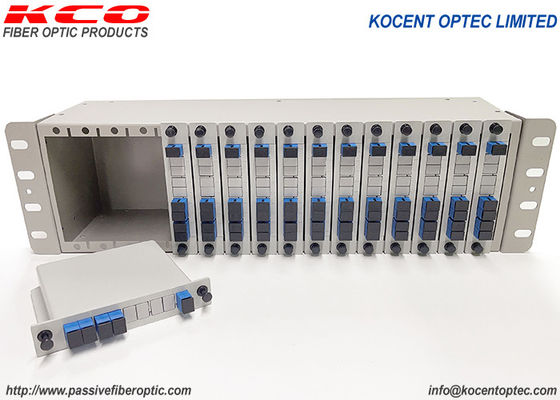

  • 3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material

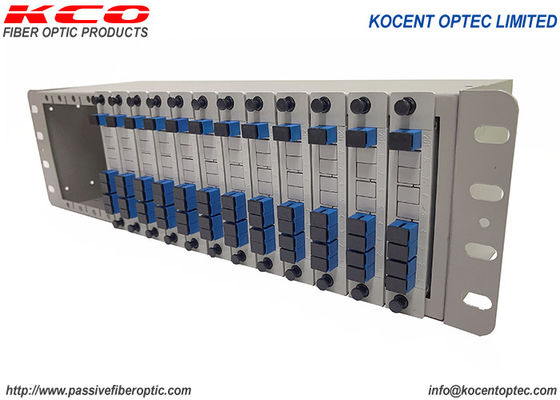

  • 3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material

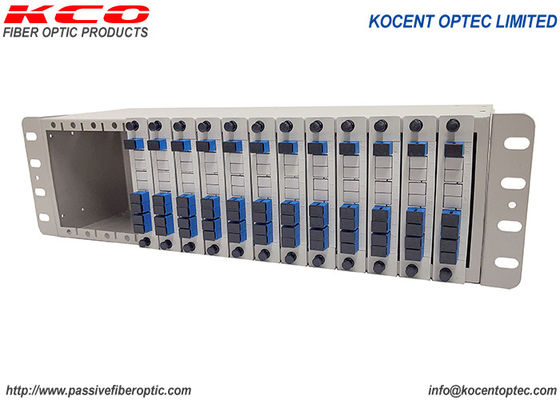

  • 3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material

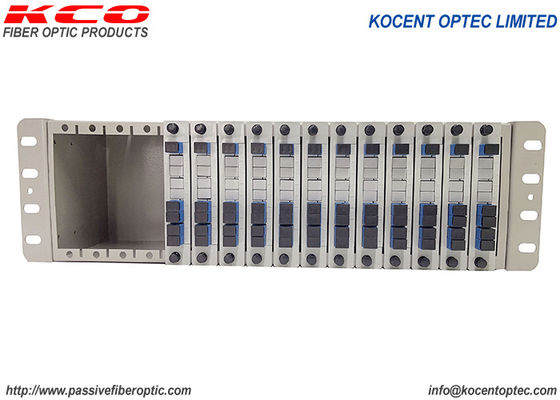

  • 3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material
  • 3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-3U-LGX-Splitter-4SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape High 3U
Splitter Type Mini Tube Type Split Way 1x4 1*4 Or Customized
Connector SCUPC SCAPC Cable 0.9mm
Size 19'' Application Indoor For Cabinet
Highlight

3U 19inch ODF Optical Fiber

,

SCUPC SCAPC ODF Optical Fiber

,

1x4 PLC Splitter
Leave a Message
Product Description
3U 19inch ODF Optical Fiber 1x4 PLC Fiber Splitter Chassis Rack Mount Patch Panel 14/16 Slot
The 3U 19inch ODF Optical Fiber 1x4 PLC Splitter is a high-capacity, high-density fiber distribution frame designed for optical access networks. It enables fiber optic line connection, distribution, and scheduling with rack-mounted convenience.
Key Features
  • Compact 3U 19" rack-mounted design saves cabinet space
  • Holds up to 16 small LGX boxes (splitter chassis capacity)
  • Available in steel thicknesses: 0.8mm, 1.0mm, or 1.2mm
  • Customizable paint colors (grey, white, black, or customer request)
  • Free splitter and adapter installation when purchasing complete system
  • Free logo printing for orders over 100 pieces
  • OEM/ODM services available
  • Low insertion loss and polarization dependent loss
  • Excellent environmental and mechanical stability
  • Compliant with Telcordia GR-1221 and GR-1209 standards
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material 0 3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material 1
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
Packing Information
  • 1pc/small carton box: 45*15*14cm/1.85kg
  • Full loaded 1x4 PLC Splitter: 3.3kg
  • Full loaded 1x8 PLC Splitter: 3.5kg
  • 8pcs/carton box: 46*30*59cm/16kg
Shipping Options
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard airports: Shenzhen, Hongkong, Hangzhou, Shanghai
3U 19-inch Rack Mount Fiber Optic Splitter with 1x4 Split Way Mini Tube Type and Steel Tape Material 2
OEM/ODM Services
We offer custom branding services for your products, including logo printing on cables, packaging, labels, and more. Contact our sales team for personalized solutions.
