1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength

  • 1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength
  • 1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength
  • 1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength
  • 1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x4-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Insert Type Pigtail Length 0.3m
Splitter Type 1*4 1x4 1:4 Connector SC/APC
Cable Dia. 0.9mm P/N KCO-LGX-1x8-SCU
Connector Color Blue Pigtail Color White
Highlight

1x4 ABS Box PLC Splitter

,

Cassette Slot Fiber Optic Splitters

,

LGX Insert Fiber Optic Splitters
Leave a Message
Product Description
1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters
Product Description
The 1:4 Cassette Slot Type ABS Box Mini PLC Fiber Optic LGX Splitter delivers reliable performance for fiber optic networks. Designed for long-term durability, it features low insertion loss and high stability across various applications including telecommunications, CATV, and data communications.
Key Features
  • Low insertion loss and low PDL
  • High reliability and stability
  • High channel counts
  • Wide wavelength range (1260-1650nm)
  • Environmentally stable performance
  • Single-mode and multimode options
  • Customized packaging and configurations available
Applications
  • PON, GPON networks
  • FTTx construction
  • Fiber optical communication systems
  • Fiber optical access networks
  • Fiber sensors
  • Fiber CATV networks
  • Local area networks
Technical Specifications
Parameter Unit 1x2 1x4 1x8 1x16
Operation Wavelength nm 1260~1650
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8
Uniformity (Max.) dB 0.6 0.7 0.8 1.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3
Return Loss dB ≥50(UPC); 60(APC)
Directivity dB ≥55
Product Images

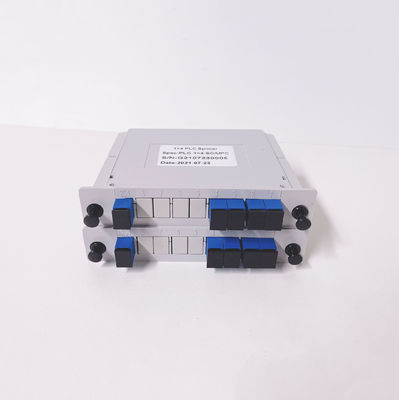

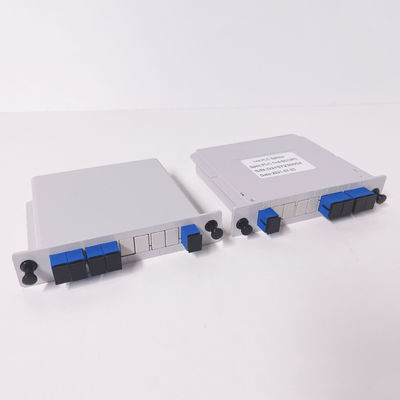

1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength 0 1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength 1
OEM/ODM Services
We offer custom branding options for your products including logo placement on cables, packaging, labels, and more. Contact our sales team for personalized solutions.

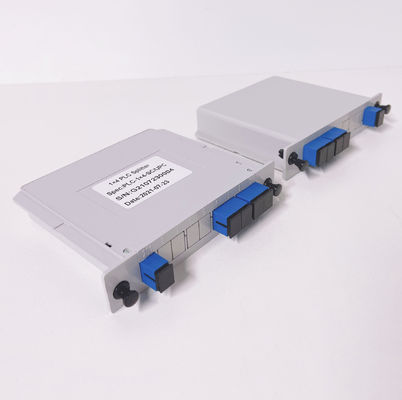

1x4 Fiber Optic Splitter with 0.3m Pigtail Length and 0.9mm Cable Diameter for 1260~1650nm Wavelength 2
Packaging & Shipping
Products are packed according to standard export requirements:
  • Carton box, wooden box, or wooden pallet packaging
  • International express shipping (UPS, TNT, DHL)
  • International air freight
  • Sea freight options available
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
