1U MPO MTP Patch Panel Fiber Optic Patch Panel with 72cores 96cores 144cores High-density Capacity

  • 1U MPO MTP Patch Panel Fiber Optic Patch Panel with 72cores 96cores 144cores High-density Capacity
  • 1U MPO MTP Patch Panel Fiber Optic Patch Panel with 72cores 96cores 144cores High-density Capacity
  • 1U MPO MTP Patch Panel Fiber Optic Patch Panel with 72cores 96cores 144cores High-density Capacity
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-RM-Cassette-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 LC/UPC, LC/APC Or Customized
Size 480x245x1U Capacity 96 Cores
Color Black, Beige Length 0.5m, 1.0m, 1.5m, Customized
Highlight

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

The 1U 19″ MTP/MPO fiber optic patch panel is a high-density breakout solution fully loaded with MPO-to-LC or MPO-to-SC connectivity. It supports quick deployment and efficient cable management for modern data center and enterprise network environments.

Quick Information
  • Upload with 4 pcs of cassettes
  • Patch panel size: 485 × 300 × 1U (mm)
  • Connector 1: MPO
  • Connector 2: LC, FC, ST, SC
  • Adapter type: LC, SC, ST, FC
  • Cable fiber numbers: 4–24 fibers
  • Cable length: 0.5 m, 1.0 m, 1.5 m, or customized
  • Capacity: 24 cores, 48 cores, 96 cores
Description

A typical MPO fiber optic patch panel features a standard 1U 19″ form factor. Inside the panel, splice trays can accommodate 1×N MPO fiber cable assemblies, or MPO fiber optic cassettes can be integrated directly into the patch panel.

The 1U MPO fiber patch panel supports a maximum of 48 or 96 output optical strands. Output connectors are available in SC, FC, ST, and LC types.

Key Features
  • Integrates a fiber patch panel with easy plug-and-play fiber cassette modules for optimized cabling management efficiency.
  • Lightweight and easy to install.
  • Simple installation and operation.
  • Compatible with FC, SC, ST, and LC adapters.
  • Mounts to standard EIA 19″ rack rails.
  • Provides a complete system solution for connectivity.
  • Delivers higher patch field density in fewer rack units, saving valuable space.
  • Ensures flexibility and ease of network deployment, moves, adds, and changes.
Product Pictures

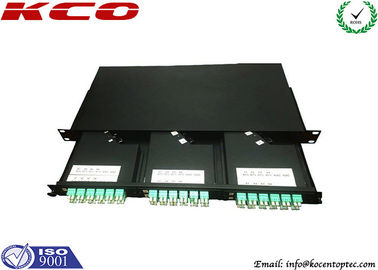

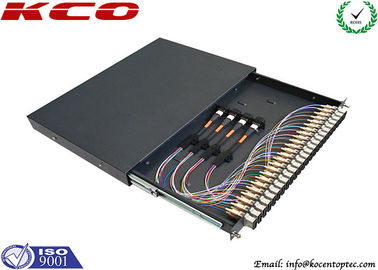

1U 19-inch MTP MPO fiber optic high-density patch panel front view with loaded cassettes MTP MPO fiber optic patch panel rear view showing MPO connectors and cable management Detailed view of MPO to LC breakout cassette module for high-density fiber patch panel
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24, etc. 8, 12, 24, etc. 8, 12, 24, etc.
Fiber Type G652D, G657A1, etc. G652D, G657A1, etc. OM1, OM2, OM3, etc.
Max. Insertion Loss Elite Low Loss: ≤0.35 dB Standard: ≤0.75 dB Elite Low Loss: ≤0.35 dB Standard: ≤0.75 dB Elite Low Loss: ≤0.35 dB Standard: ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature −40°C to +80°C −40°C to +80°C −40°C to +80°C
Test Wavelength 1310 nm 1310 nm 1310 nm
Insert-Pull Test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-Tensile Force 15 kgf
Packing

According to export standard packing.

OEM / ODM Service

Our OEM and ODM services are always ready. If you want to display your own brand logo on the product cable, product package, or rack mount, there is no problem. Our OEM service is always ready to serve you.

Shipping
  • By international express: TNT, DHL, UPS, special line express, etc.
  • By air: CA, ZH, CZ, AA, AC, BA, etc.
  • By sea
