19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity

  • 19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity
  • 19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity
  • 19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity
  • 19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-1922U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 LC Duplex
Size 480x245x2U Capacity 192 Cores
Color Black Length 0.2m, 0.3m
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
Highlight

2U MPO Patch Panel

,

192 Core MPO Patch Panel

,

MTP Rack Mount Patch Panel
Leave a Message
Product Description
19 Inch 2U MPO Patch Panel 192 Core MTP Rack Mount ODF LC Duplex

The 192-core 19-inch 2U MPO Patch Panel MTP Rack Mount Terminal Box ODF is constructed with cold rolled sheet and frosted painting. The cassette is made of plastic, and the adapter plate is also plastic construction.

The cassette is securely fixed on the panel with a pressing valve. This MPO fiber optic patch panel supports SC/FC/ST/LC connectors with UPC and APC options, available in 1U, 2U, and 4U configurations.

Key Features
Constructed with high-strength steel tape for durability
Spacious design ensures proper fiber bend radius
High density - 1U rack accommodates 96 fibers, saving valuable space
Standard 19" size compatible with rack type cabinets for easy installation
Comprehensive system solution for connectivity needs
Effective cable management system for easy identification
Lightweight yet strong construction with excellent shock and dust resistance
Maximizes patch field density while minimizing rack space usage
Provides flexibility for network deployment and modifications
Product Images

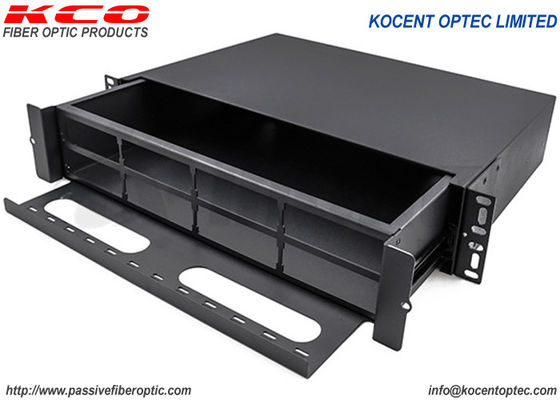

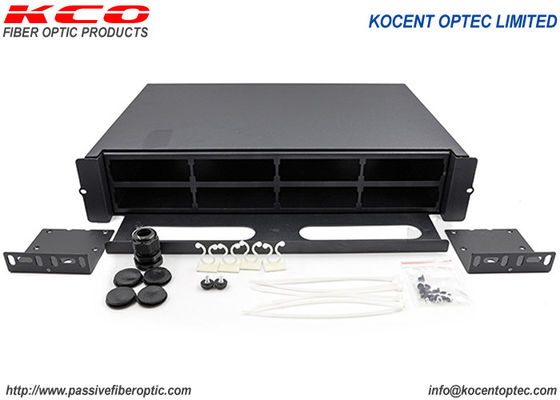

19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity 0 19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity 1
Product Dimensions
19 Inch 2U MPO Patch Panel with 192 Core Capacity and Rack Mount Design for LC Duplex Connectivity 2
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Low Loss ≤0.35 dB
Standard ≤0.75dB		 Elite Low Loss ≤0.35 dB
Standard ≤0.75dB		 Elite Low Loss ≤0.35 dB
Standard ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Additional Specifications
Insert-pull test: 1000 times <0.5 dB
Interchange: <0.5 dB
Anti-tensile force: 15kgf
Fiber Capacity: Max 96fo
Panel Connector: LC duplex
Type: Drawting
Dimension: 19''1U
Material: Cold Rolled Steel or Aluminum
Storage Temperature: -45~+65℃
Thickness: 0.6 0.8 1.0 1.2 1.5mm
Accessories: Cable ties, mounting ear screws, and spiral wrap tube
MPO type: SM: G652D, G657A1, G657A2 MM: OM1, OM2, OM3, OM4, OM5
Cable Cover: LSZH
Length: 0.3m, 0.5m
