G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord

  • G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord
  • G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord
  • G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord
  • G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOA-MPOA-12fo-LSZH-xM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO/APC Fiber OS1
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 9/125
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Yellow
Highlight

G657 single mode fiber MPO patch cord

,

MTP to LC duplex fiber breakout cable

,

8 cores MPO to DLC fiber cord
Leave a Message
Product Description

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord

Description:

KCO Fiber factory directly sell G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord

  • MPO To DLC / MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord is fiber optic patch cord that the main cable is 8f micro cable.
  • The patch cable one side comes with MPO-8 or MTP-8 APC polishing type and an other side comes with LC duplex uni-boot connector (normally is LC/UPC type).
  • Same as MPO / MTP trunk cable, the MPO-8 / MTP-8 to LC duplex uni-boot fiber optical break-out cables have 3 type of connection method. They are type A (trainght through), type B (cross connect), type C (cross pair).
  • The LC duplex uniboot connectors are compact fiber optic plug that combines two fibers into a single boot. It allows a single cable to carry both transmit and receive signals, cutting the bulk of traditional duplex patching in half. It feature save space, easy polarity reversal and easy to arange the cable.

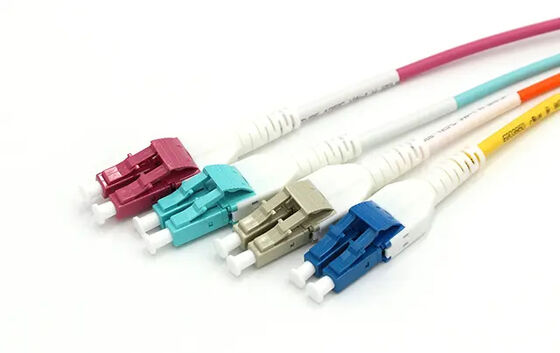

  • The LC Uniboot Connector: Uses one round cable containing both fibers. Both share a single boot.

Option 1: MPO-8 APC connector + mini cable SM G657A1 8F + LC/UPC Duplex Uni-boot connector

Option 2: MTP-8 APC connector + mini cable SM G657A1 8F + LC/UPC Duplex Uni-boot connector

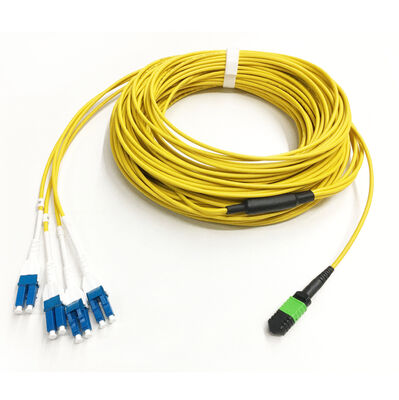

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord 0


MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord Polarity

  • 1. Type A (Straight-Through): Key down to Key down

Fiber Mapping: Fiber 1 to Fiber 1 (LC), Fiber 2 to Fiber 2, and so on.

How it works: Because this maintains a straight-through path, the Tx → Rx flip must happen somewhere else in the network. To complete the circuit, you must use a standard A-to-B (Crossover) LC duplex patch cord at one end (e.g., at the switch/transceiver).

  • 2. Type B (Cross Connect): Key up to Key up

Fiber Mapping: Fiber 1 to Fiber 12 (LC), Fiber 2 connects to Fiber 11, and so on.

How it works: This creates an inherent flip within the cable itself. Because of this internal reversal, you must use a Straight-Through A-to-A LC patch cord to maintain the correct Tx → Rx orientation.

  • 3. Type C (Cross Pair-Flipped): Key down to Key down

Fiber Mapping: Fiber 1 to Fiber 2 (LC), Fiber 2 to Fiber 1, Fiber 3 to Fiber 4, Fiber 4 to Fiber 3 and so on.

How it works: The pair-flip naturally maps Tx to Rx from end to end, making it ideal for connecting directly to duplex LC uniboot equipment without needing any special crossover patch cords.

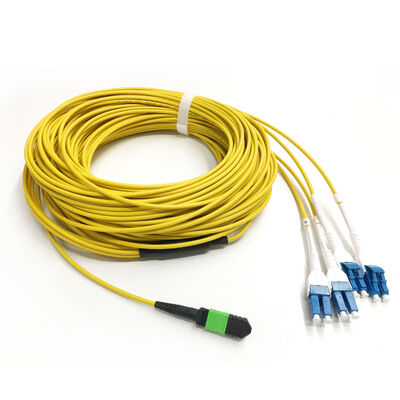

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord 1


Main Using

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cords are is used to bridge high-speed multi-fiber equipment to lower-speed duplex devices. Its main using include:

  • Port Splitting (40G/100G to 10G/25G): You can plug the MPO end into a single high-speed transceiver (like a QSFP+, QSFP28) on a core switch. The LC uniboot ends then plug into individual lower-speed servers or switches.
  • Consolidating Cable Clutter: It aggregates multiple standard LC patch panels into a single MPO trunk cable. This cuts down on cable mass and opens up airflow inside crowded server racks.
  • Direct Equipment-to-Panel Connections: It easily links backbone high-density fiber paths directly to localized standard LC hardware edges.

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord 2

Application

  • Data Center
  • AI center
  • Starlink connection center
  • FTTH
  • FTTH
  • FTTO
  • FTTC
  • FTTR
  • FTTX

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord 3

Specification:

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.657A)
Jacket Materials LSZH/OFNR/PVC
Connector Side A

MPO APC female / male

MTP APC female / male
Connector Side B

LC/UPC duplex uni-boot

LC/APC duplex uni-boot

Others
Ferrule Materials Glass-filled polyme
Testing Wavelengths 1310±30/1550±30nm
Insertion Losss IL (dB)

≤ 0.35dB (ultra low loss)

≤ 0.65dB (standard loss)
Return Loss RL (dB) ≥ 55dB(APC)
Exchangeability ≤ 0.2dB
Cable Assemblies Trunk cable
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.

Packing:

G657 Single Mode Fiber 8 Cores MPO To DLC MTP 8F to LC Duplex Uni-boot Optical Fiber Break-out Fan-out Patch Cord 4


OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, pallet.

Standard marking.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
