Multimode Fiber Optic Connectors
|Place of Origin||Guangdong, China|
|Model Number||LC/UPC, LC/APC, LC/PC|
|Minimum Order Quantity||Negotiation|
|Packaging Details||PE bag, carton box, wooden pallet|
|Delivery Time||2~5 days after get payment|
|Payment Terms||Western Union, T/T, L/C|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Type||LC/UPC, LC/APC, LC/PC||Insertion Loss||0.2dB|
|Mode||Multimode, MM, Single Mode, SM, Mono Mode||Return Loss||55dB|
|Cores||2 Cores, Duplex, 1 Cores, Simplex, Multi Fibers||Length||3m, 5m, Customized|
fibre optics connectors,
optical fibre cable connectors

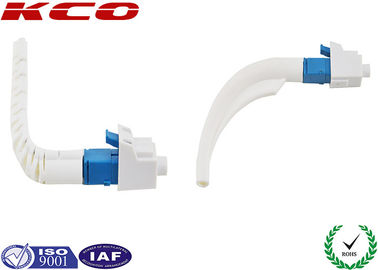

LC single mode multimode fiber optic connector with 45° 90° degree bent boot
Fiber Optic Connectors Descriptions:
- Fiber Optic Connectors is the device connected with two optical fiber cables. It is face to face precision connecting in order to make the transmission fiber coupled to the receiving fiber. To make sure the transmission system and performance stable, the insertion loss and optical performance of fiber optic connector should be excellent.
- The LC connector provides a pull-proof design and small size perfect for high-density applications.
- Available in simplex or duplex versions.
- The LC connector is provided with a 1.25mm zirconia ferrule.
- The LC also incorporates a unique latching mechanism providing stability in system rack mounts.
- We can supply the LC fiber optic connector with 45 degree or 90 degree bent boot for fiber optic patch cable making.
Fiber Optic Connectors Applications:
- Telecommunication Network, wide area networks.
- Local Area Network(LAN).
- Testing Equipment.
- Optical Switch interface connections
- Gigabit Ethernet
- CATV and WAN
- Testing Instrument, active device connection
- Premise Installations
- Telecommunication Networks
- Fiber to the home (FTTH)
Fiber Optic Connectors Features:
- High quality ceramic components and Material.
- End-face geometry requirement complies to Telcordia GR-326-CORE.
- 100% tested on optical performance (Insertion Loss & Return Loss).
- Simplex, duplex and higher core densities.
- 900 micron, 2mm, 3mm cable applications.
- Low insertion loss
- High return loss
- Excellent repeatability
- Compact and anti-pull design
- High precision exact alignment
- UPC, PC or APC polished connectors
Fiber Optic Connectors Product Pictures:
Details about Fiber Optic Connectors:
|Connector Body||UL 94V-0 rated Thermoplastic to meet standard; amiability ratings|
|Crimp Insert/Crimp Tube||Nickel-Plated Brass/Thermoplastic Elastomer Polymer|
|Dust Cap||Nylon or PVC|
|Strain Relief Boot||Flame retardant (UL-Rated 94-V0) polymer|
|Connector Style||SC, FC, ST, LC, MTRJ, etc|
Fiber Optic Connectors Specifications:
|0.3dB Max. (0.2dB typ.)||0.3dB Max. (0.2dB typ.)|
|Return Loss||≥45 dB||≥50 dB||≥60 dB||N.A|
|Insert Loss/MTRJ Connector||0.5dB Max. (0.45dB typ.)||0.5dB Max. (0.45dB typ.)|
1, Connector type: SC, LC, FC, ST, MTRJ, SMA, DIN, D4, etc
2, Polish: UPC, PC, APC
3, Mode: Single mode, Multimode
4, Fiber Count: Simplex or Duplex
5, Connector boot diameter: 0.9mm, 2.0mm or 3.0mm
According to export standard packing.
OEM/ODM service: Our OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product cable, product package or rack mount, it is no any problem. Our OEM service is always ready to servise you.
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
