SM 9/125 Fiber Optic Patch Cord , Optical Fiber Jumper 10m 20m 50m 100m

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number E2000/APC-E2000/APC-SMSX-3.0mm-xM-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 E2000/APC Connector 2 E2000/AOZ
Core SIMPLEX Cover PVC, LSZH, Armored, Customized
Insertion Loss 0.2dB Return Loss 60dB
Highlight

fiber optic pigtail cables

,

patch cord pigtail

Leave a Message
Product Description



SM 9/125 Fiber Optic Patch Cord , Optical Fiber Jumper 10m 20m 50m 100m



KOCENT OPTEC LIMITED supply standard quality of E2000/UPC and E2000/APC fiber optic jumper / patch cord/ patch cable / pigtail in Single mode 9/125 and Multimode 50/125, Multimode 62.5/125, OM3 and OM4. We can make in all length of cable and in simplex, duplex or multi-fibers. With complete of fiber optic patch cord production line and closed of CQ process, we warran that all of goods are tested well and meet Telecom level before shipment.



Below is detail information about E2000/APC optical fiber jumper.



Quick informations:
Connector 1: E2000/APC
Connector 2: E2000/APC
Mode: single mode

Fiber: G652D, G657A, G655
Fiber number: simplex, duplex
Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Cover: PVC, LSZH
Length: 1m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 1000m, ...
IL: 0.15dB
RL: 55dB


About fiber optic patch cable:

- A fiber optic patch cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunicationequipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.

About single mode cables:
- Single Mode fiber optic cable has a small diametral core that allows only one mode of light to propagate. Because of this, the number of light reflections created as the light passes through the core decreases, lowering attenuation and creating the ability for the signal to travel further. This application is typically used in long distance, higher bandwidth runs by Telcos, CATV companies, and Colleges and Universities.

Product pictures:

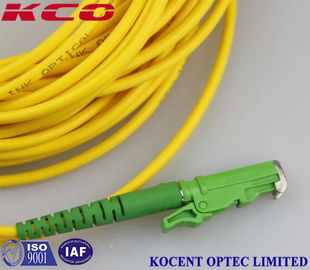

SM 9/125 Fiber Optic Patch Cord , Optical Fiber Jumper 10m 20m 50m 100m 0

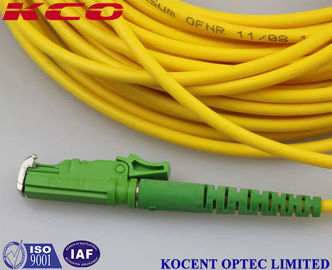

SM 9/125 Fiber Optic Patch Cord , Optical Fiber Jumper 10m 20m 50m 100m 1

SM 9/125 Fiber Optic Patch Cord , Optical Fiber Jumper 10m 20m 50m 100m 2



Fiber optic patch cable Specifications:

Type Standard,Master
Connector Style

E2000/UPC, E2000/APC

LC, SC, ST, FC, SC/APC, FC/APC, LC/APC, ...
Duplex MTRJ/Female, MTRJ/Male

FDDI, MU, DIN, D4, MPO, MTP

Fiber Type

9/125 SMF-28 or equivalent (Single mode) OS1


50/125, 62.5/125 (Multimode) OM2&OM1

50/125 10G (Multimode) OM3
G652 (all type), G657(all type), G655(all type)

Cable Type

Simplex, Duplex (Zip cord)
Φ3.0mm,
Φ2.0mm

Φ0.9mm
buffered fiber cable

Fanout cable

Branched out cable

Cable Cover material PVC
LSZH
Armored
Water-proof
FTTH
Outdoor
Return Loss
(For Single mode) ≤ 0.15dB (For Single mode Master)
≤ 0.30dB (For Single mode Standard)

≤ 0.30dB (For Multi mode)

Tested by JDS RM 3750
UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating Temperature -40°C to 85°C



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
