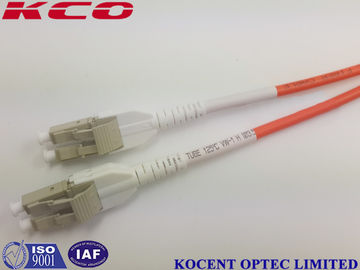

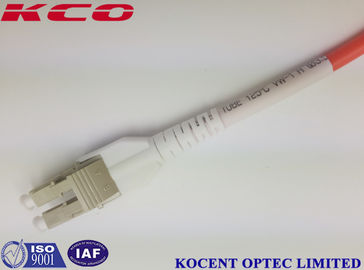

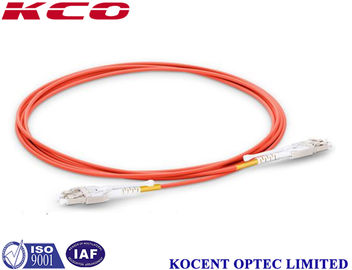

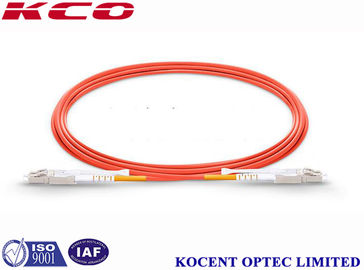

LC Uniboot Multimode OM1 62.5/125 Fiber Optic Patch Cord LSZH PVC 3m 5m 7m 10m
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | LC/UPC Uniboot | Connector 2 | LC/UPC Unitboot, SC Uniboot |
|---|---|---|---|
| Core | 2 Cores | Cover | LSZH, Armored, Customized |
| Insertion Loss | 0.2dB | Return Loss | 60dB |
| Highlight | fiber optic pigtail cables,patch cord pigtail |
||
Product Description
LC Uniboot Multimode OM1 62.5/125 Fiber Optic Patch Cord
Available in lengths: 3m, 5m, 7m, 10m, 15m, 20m, 30m with LSZH PVC construction
Product Overview
The LC Uniboot connector is a duplex LC connector with a single boot design that accommodates a single round duplex 3mm cable. This innovative design reduces cable count and weight by 50% while fitting all duplex and simplex adapters.
Key Features
- Compact, pull-proof design with RJ-45 style interface
- RoHS compliant materials
- Extended latch for easy disengagement in high-density packaging
- Stainless stop-ring and crimp-ring structures for superior retention
- Field-reversible polarity without re-termination
Design Advantages
The LC Uniboot connector utilizes a unique switchable design that allows use of round style 2mm or 3mm jacketed cable instead of traditional zipcord duplex cable. The housing can be disassembled in the field without special tools, enabling fiber polarity switching during installation.
Applications
Data Center Transceivers
Ideal for SFP and XFP transceivers, reducing cable diameter and optimizing data center space utilization.
Fiber Cable Distribution
- Widely used in data center bundle configurations along yellow channels
- Connects and distributes routers, switches, servers, and storage devices
Technical Specifications
| Parameter | Specification |
|---|---|
| Flame Rating | LSZH/FRNC |
| Cable Assembly Type | 2 Fibres |
| Fibre Category | SM, OM3, OM4 |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Polish Type | UPC |
| Housing Material | PEI and Stainless Steel |
| Boot Colors | Blue, Green, Grey, White |
| Temperature Range | -40℃ to 85℃ |
| Durability | IL≤0.2dB (500 cycles) |
| Tensile Strength | 44 N |
| Insertion Loss (Typical) | 0.15 dB |
| Insertion Loss (Maximum) | 0.3 dB |
| Reflectance | ≤-55dB |
Performance Characteristics
Multimode graded index optical fiber patch cord optimized for interconnection of SAN switches, networking equipment and Fibre Channel devices supporting up to 10Gbps data transmission. 10Gbps laser-optimized for VCSEL applications.
Customization Services
OEM/ODM services available with custom branding on cables, packaging, labels, and other components.
Packaging & Shipping
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets. Shipping options include international express (UPS, TNT, DHL), international air freight, and sea freight.
