SM Duplex SC/UPC-SC/UPC 2.0mm Fiber Optic Patch Cord PVC LSZH 1.0m

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number SC-SC-UPC-SM--DX 2.0mm-1.0m
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC/UPC DX Connector 2 SC/UPC DX
Core Duplex Cover PVC, LSZH
Insertion Loss 0.2dB Return Loss 55dB
Diameter 2.0mm Mode Single Mode
High Light

fiber optic pigtail cables

,

patch cord pigtail

Leave a Message
Product Description

Fiber Optic Patch Cord SM Duplex SC/UPC-SC/UPC 2.0mm PVC LSZH 1.0m



Kocent Optec Limited provides OEM service for all kinds of fiber optic patch cables, including common type of FC, LC, SC, ST, and MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, SC Uniboot. Specially in LC uniboot patch cable.



We also provides a high optical performance Duplex SC/UPC-SC/UPC optical fiber patch cords which save half of the operation spaces required.



SC/UPC-SC/UPC Duplex patch cords are now used as the preferred option of fiber patch cords for data center high density connectivity.



Fiber Optical Patch Cord Summary:

About Fiber optic connector , the ITU call it as a kind of passive light component which can connect two or more fiber lines stably but not always. It can make a close connection for fiber cable and make a wonderful transmission for the light energy .



Key Features:

1 Low IL & high RL

2 Good exchangeability & durability

3 High reliability and stability

4 UL-rated plastic housing

5 Patch cords accord with GR-326,ISO9001,ROHS



Application :

1 fiber optic communication network

2 fiber broadband access network

3 CATV

4 Active device termination

5 Metro and Local Area Networks

6 Telecommunication networks



Ordering options:

1 Connector type: FC, SC, LC, ST

2 Ferrule End-face: PC, UPC, APC

3 Core Type: Single Mode 9/125

4 Fiber Core: Duplex

5 Cable Diameter: φ2.0mm, φ0.9mm

6 Cable Length: 1, 2, 3 meter or customized

7 Cable type: PVC, LSZH



Specification:

Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity

≤0.2dB (+25+65 93 R.H.100 hours)

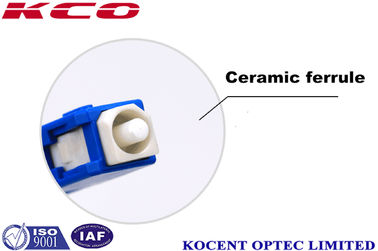

SM Duplex SC/UPC-SC/UPC 2.0mm Fiber Optic Patch Cord PVC LSZH 1.0m 0

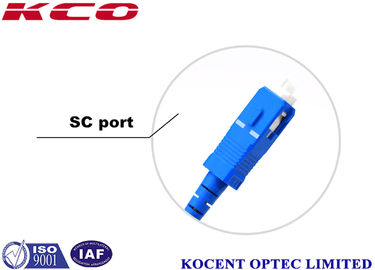

SM Duplex SC/UPC-SC/UPC 2.0mm Fiber Optic Patch Cord PVC LSZH 1.0m 1

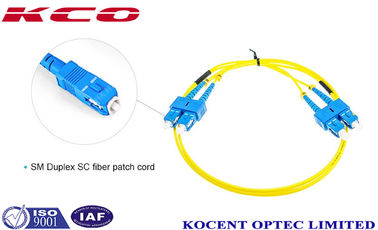

SM Duplex SC/UPC-SC/UPC 2.0mm Fiber Optic Patch Cord PVC LSZH 1.0m 2

OEM/ODM Service:



If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
