2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fast Connector with 55mm Length for Field Assembly

  • 2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fast Connector with 55mm Length for Field Assembly
  • 2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fast Connector with 55mm Length for Field Assembly
  • 2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fast Connector with 55mm Length for Field Assembly
  • 2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fast Connector with 55mm Length for Field Assembly
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-LC-APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST LC Color Green
Insertion Loss 0.2dB Return Loss 55dB
Mode Single Mode, Multi Mode Length 55mm 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description

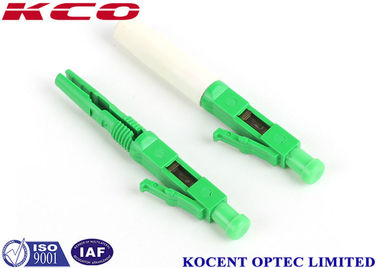

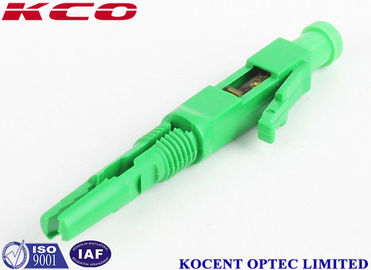

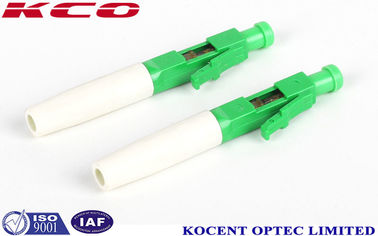

2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fiber Fast Connector 55mm 60mm
Green 2.0mm 3.0mm FTTX LC/APC Quick Connector, Field Assembly Connector, 55mm 60mm. Field Assembly SC quick connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. This Fiber Fast Connector is designed for field-assembled optical fiber connections, widely used in fiber-to-the-home (FTTH) access optical networks for quick assembly with drop cables.
This connector system eliminates the need for epoxy, adhesive, or costly curing ovens and polishing equipment, and removes the requirement for fiber deface inspection.
  • Twin end-face of pre-embedded fiber is factory polished
  • Fiber optics aligned in V-groove through ceramic ferrule
  • Side cover design provides complete preservation of matching liquid
  • Ceramic ferrule with pre-embedded fiber polished to APC
  • Controllable FTTH cable length
  • Simple tooling, easy operation, portable style and reusable design
    • Key Features
  • Quick and easy fiber termination in the field
  • No special assembling tools required
  • No epoxy or polishing needed
  • Minimized defect rate with removal and reusable features
  • Reusable with up to 300 repeat operations
  • Cost-effective solution
    • Applications
  • Terminal of multimedia devices
  • Telecommunication networks
  • Industrial, military and other specialized applications
  • Local Area Networks (LANs)
  • Data processing networks
  • Industrial, medical & military applications
    • Technical Specifications
    Item Parameter
    Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
    Fiber Diameter 125μm (652 & 657)
    Coating Diameter 250μm
    Mode SM
    Operation Time about 15s (exclude fiber presetting)
    Insertion Loss ≤ 0.25dB (1310nm & 1550nm)
    Return Loss ≤ -45dB
    Success Rate >98%
    Reusable Times >10 times
    Tensile Strength >5 N
    Tighten Strength of Coating >10 N
    Temperature -40~+85°C
    On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
    Mechanical Durability (500 times) IL ≤ 0.3dB
    Drop Test (4m concrete floor, once each direction, three times total) IL ≤ 0.3dB
    2.0mm 3.0mm FTTX LC/APC Quick Fiber Optic Fast Connector with 55mm Length for Field Assembly 0
    OEM/ODM Service
    We offer custom branding options for your goods including cables, packaging bags, labels, or any other visible components. Our OEM and ODM services are available to meet your specific branding requirements.
    Packing
    Standard export packing options available including carton boxes, wooden boxes, and wooden pallets.
    Shipping Options
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Sea freight
