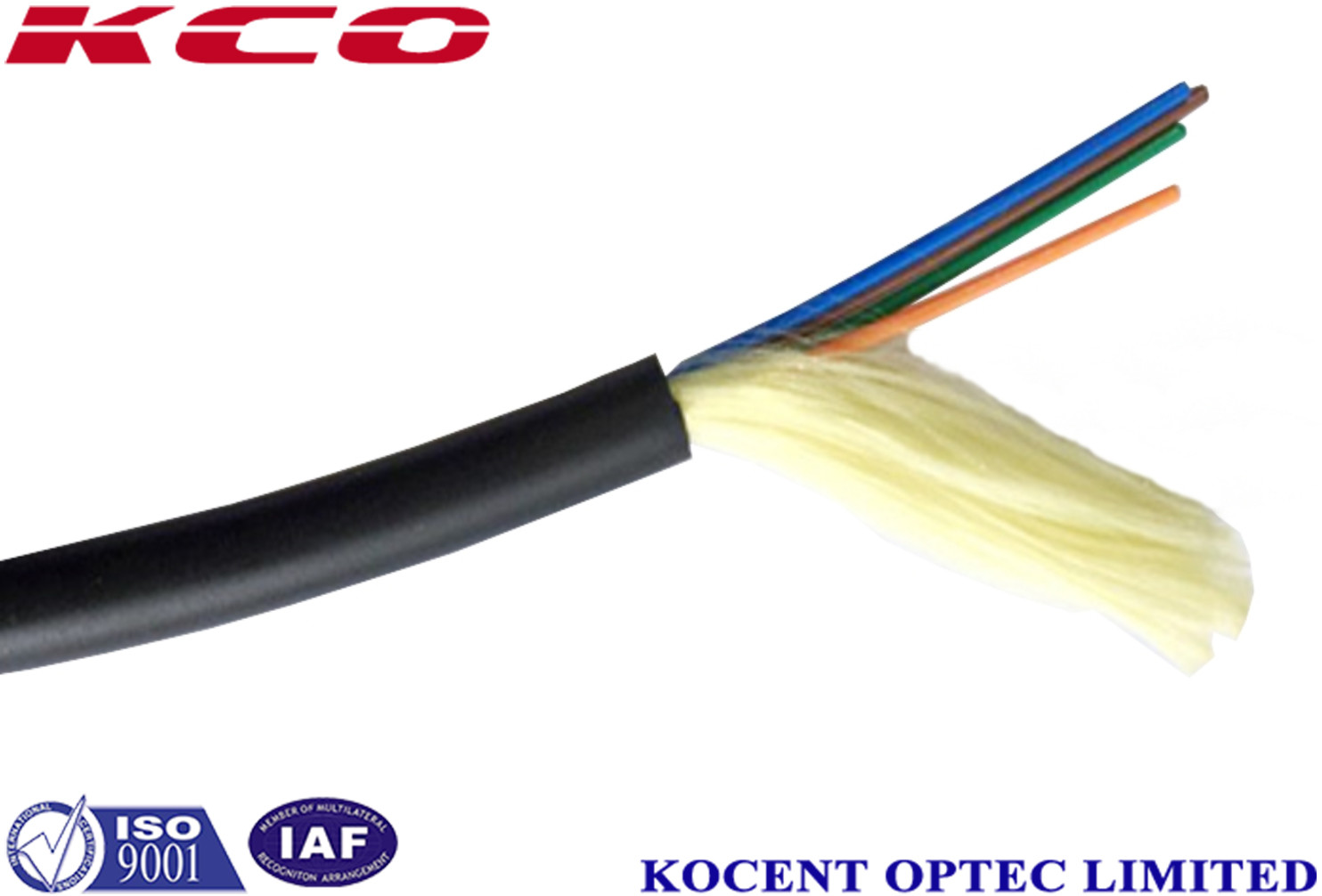

4 Fibers Non Metallic Outdoor Field Fiber Optic Cable 7.0mm TPU Tight Buffered CPRI Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-Non-Metallic-Field-12fo |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | LSHZ, PVC, TPU | Name | Outdoor Field Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Application | Outdoor Or Customized |
| Fiber | Single Mode, Multimode, OM3, OM4, OM5 | Cores | 4 Cores To 24 Cores |
| Highlight | optical fibre cable,indoor outdoor fiber optic cable |
||
Product Description
Product Overview
The 4-Fiber Outdoor CPRI Field Tight Buffered Fiber Optic Cable is a non-metallic, ruggedized solution engineered for mili tary and harsh-environment deployments. Available in single-mode and multimode (OM3/OM4) configurations with a 7.0mm TPU sheath, this cable delivers reliable, high-bandwidth communications in the most demanding field conditions.
Available fiber counts: 4FO, 8FO, 12FO, 24FO.
Designed for Critical Field Communications
Today's personnel face a multitude of challenges due to the ever-changing operational theater. To improve safety and maximize situational awareness, forces continue to upgrade communications and monitoring infrastructure.
- Investing in fiber optic systems as a cost-effective network alternative provides essential communications solutions, including greater bandwidth for real-time voice, data, and video applications — all in an easily deployable platform.
- It is equally critical that these communication systems yield a reliable network between the theater and command control center.
- Approved and certified fiber optic cables and harsh-environment connectors offer the reliability and performance needed when communications are vital for mission success.
- Designed for uncompromised dependability in the harshest conditions, these mili tary-grade physical plant fiber cables and connectivity products have been tested to the most extreme standards and are battlefield-proven in real-world operations.
Key Characteristics

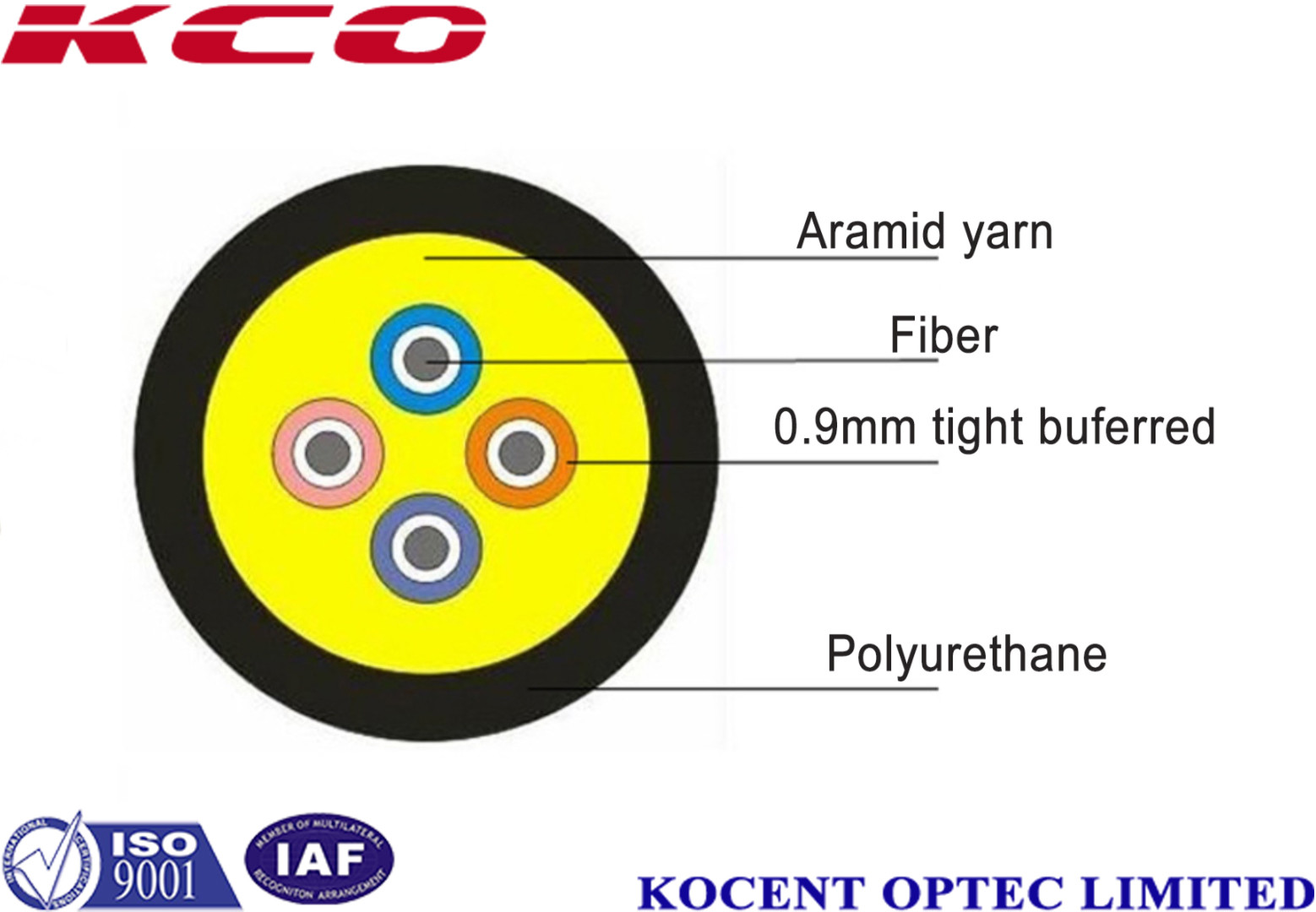

- High-strength aramid yarn strength member ensures high tensile strength and long-term stability in transmission.
- Small outer diameter and lightweight construction for easy field deployment.
- Flame-retardant, easy to strip, low attenuation, and highly flexible.
- Direct splicing between tight buffered cables — no tie-in box or pigtail required.
- Suitable for rapid installation and convenient maintenance in the field.
Operating Temperature Range
-20°C to +70°C
Product Photos
Fiber Optic Cable Technical Parameters
| Cable Count | Out Sheath Diameter (mm) | Weight (KG) | Min. Tensile Strength — Short Term (N) | Min. Tensile Strength — Long Term (N) | Min. Crush Load — Short Term (N/100mm) | Min. Crush Load — Long Term (N/100mm) | Min. Bending Radius — Short Term (mm) | Min. Bending Radius — Long Term (mm) | Storage Temperature (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 24 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 36 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 42 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 48 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 60 | 10.5 | 105.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 72 | 13.5 | 208.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 96 | 13.5 | 208.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
| 144 | 15.5 | 295.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40 to +60 |
Optical Characteristics
| Fiber Sort | Type | Standard | Description |
|---|---|---|---|
| Multimode | G.651 | A1a: 50/125 | Graded-index fiber |
| G.651 | A1b: 62.5/125 | Graded-index fiber | |
| Singlemode | G.652 (A, B, C) | B1.1 | Conventional fiber |
| G.652D | B2 | Zero dispersion shifted | |
| G.655 | B1.2 | Cut-off wavelength shifted | |
| G.657 (A1, A2, B3) | B4 | Main technical data for positive dispersion shifted single-mode fiber |
OEM / ODM Service
If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.
Packing
According to standard export packing:
- Carton box
- Wooden box
- Wooden pallet
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
