500M Span Double PE Sheath Water-proof ADSS Fiber Optic Cable for All-Dielectric Self-Supporting Aerial Outdoor Networks
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-ADSS-SS-50-G652D |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Product Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 3~5km Each Roll | Cable Type | ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 288 Cores |
| Color | Black | Diameter | 9.0mm |
| Part Number | KCO-ADSS-SS-50-G652D | MNF | Kocent Optec Limited |
| Origin | Guangdong, China | ||
| Highlight | 500M Span ADSS Fiber Optic Cable,Double PE Sheath ADSS Cable,Water-proof Aerial Fiber Optic Cable |
||
Product Description
Product Overview

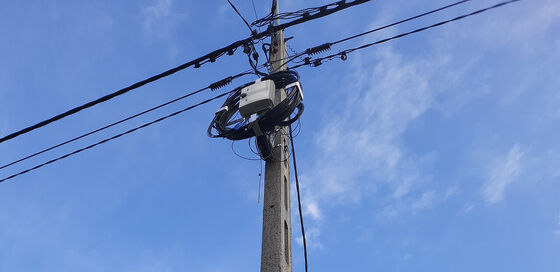

The double sheath ADSS water-proof aerial outdoor cable is a specialized all-dielectric self-supporting (ADSS) fiber optic cable featuring two independent protective sheath layers. It is designed for long-span overhead installation in high-voltage power transmission line environments.
This 500M span double sheath ADSS cable is a non-metallic aerial self-supporting outdoor fiber optic cable. It is specifically optimized for overhead deployment on 110kV–220kV high-voltage power lines, using ITU-T G.657A2 bend-insensitive single-mode fibers to deliver superior mechanical reliability and long-term transmission stability.
Double sheath ADSS cables typically scale from 2 fibers up to 288 fibers. The double-layer jacket design enhances overall protection and mechanical reliability.
The cable is available with a wide range of fiber types, including single mode fiber (SMF) 9/125 G.652D, G.657A1, and G.655, as well as multimode fiber (MMF) 62.5/125 OM1 and 50/125 OM2, OM3, OM4, and OM5.
Double sheath ADSS all-dielectric self-supporting fiber optic cables are typically engineered for spans ranging from 100 meters up to 1500 meters. The cable is fully compliant with AS/NZS S008, IEC 60794-3-20, and IEEE 1222 industry standards.
Main Applications
- 500kV and above ultra-high voltage transmission corridors
- Wide river and large obstacle crossing aerial routes
- Large-scale new energy base backbone communication
- Complex mountain and plateau long-distance trunk lines
- Cross-regional power communication private network backbones
- Heavy ice and severe weather prone areas

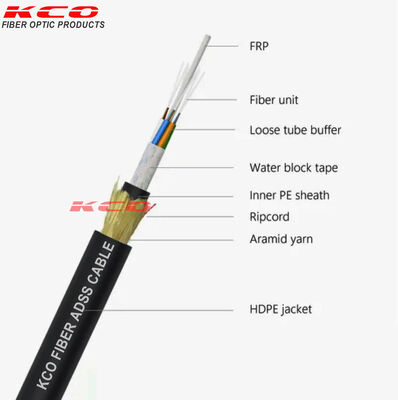

Cable Structure
Key Advantages
- 500M ultra-long span, dramatically cutting engineering costs
- Dual-sheath hierarchical protection, extending service life to 25 years
- 25kV high electric field resistance, fully adapted to UHV corridors
- Full-dielectric non-metallic structure with zero electromagnetic interference and natural lightning protection
- Low failure rate and minimal long-term O&M workload
- No-power-outage installation, highly compatible with existing lines
500M Span Double Sheath ADSS Cable Technical Data
| Parameter | Value |
|---|---|
| Cable Type | All-dielectric self-supporting (ADSS) double-sheath aerial optical cable |
| Standard Fiber Count Range | 12F ~ 288F |
| Default Fiber Type | ITU-T G.657A2 single-mode optical fiber |
| Sheath Structure | Double-layer: inner water-blocking PE sheath + outer AT anti-tracking UV-resistant PE sheath |
| Reinforcement Member | High-modulus aramid yarn full non-metallic reinforcement |
| Operating Temperature Range | -40℃ ~ +70℃ |
| Storage Temperature Range | -50℃ ~ +75℃ |
| Certified Standards | IEEE P1222, IEC 60794-1, GB/T 18899, DL/T 788 |
| Service Life | ≥ 25 years under rated operating conditions |
Single Mode Fiber Characteristics
| Characteristic Item | G.652 (Standard Non-Dispersion-Shifted Fiber) | G.657 (Bending-Insensitive Fiber) | G.655 (Non-Zero Dispersion-Shifted Fiber) |
|---|---|---|---|
| Core/Cladding Size | 9/125 µm | 9/125 µm | 9/125 µm |
| Zero-Dispersion Wavelength | Near 1310 nm; 1550 nm band dispersion ~18 ps/(nm*km) | G.657A: 1300–1420 nm; G.657B: no mandatory requirement | No fixed zero-dispersion point; maintains non-zero low dispersion in the 1550 nm band |
| 1550 nm Max Attenuation | ≤0.26 dB/km | ≤0.20 dB/km (G.657A2) | ≤0.25 dB/km |
| Minimum Bending Radius (1550 nm) | 30 mm, bending loss ≤0.1 dB/turn | G.657A1: 10 mm; G.657A2: 7.5 mm, loss ≤0.1 dB/turn | 30 mm, similar to G.652, no special bending optimization |
| Water Peak Performance | G.652C/D eliminates water peak, supports 1260–1625 nm full-band transmission | All models are low-water-peak, full-band transmission | Low-water-peak design, optimized for C+L band |
| Backward Compatibility | — | Fully compatible with G.652D; no special adjustment required for existing links | Poor compatibility; cannot be directly mixed with G.652 for long-distance DWDM links |
| Core Technical Features | The most widely deployed legacy standard globally; low cost, mature process | Optimized bending resistance, 1/4–1/2 bending radius of G.652, no extra loss in narrow spaces | Suppresses four-wave mixing nonlinear effect; no dispersion compensation needed for 10G+ long-distance transmission |
| 10G Max Transmission Distance | 40 km (no dispersion compensation) | 40 km (same as G.652D) | 160 km+ |
| DWDM System Support | Only supports low-density CWDM; cannot carry high-channel-count DWDM | Supports CWDM and low-density DWDM | Dedicated for long-haul high-density DWDM 40G/100G/400G systems |
| Main Application Scenarios | Metro backbones, access networks, the vast majority of existing outdoor overhead/pipe optical cables | FTTH indoor wiring, data center high-density cabling, narrow-space deployment such as corners and wiring ducts | Ultra-long-haul trunk lines, cross-provincial optical transmission networks, submarine cable landing sections |
| Relative Cost Level | Lowest | Slightly higher than G.652 | Highest |
Fiber Color Code
| Position | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Color | Blue | Orange | Green | Brown | Grey | White |
| Position | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
OEM / ODM Service
If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — that is no problem at all. Our OEM and ODM service is always ready to accommodate your requirements.
Packing & Shipping
Packing
Standard export packing: carton box, wooden box, or wooden pallet.
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
